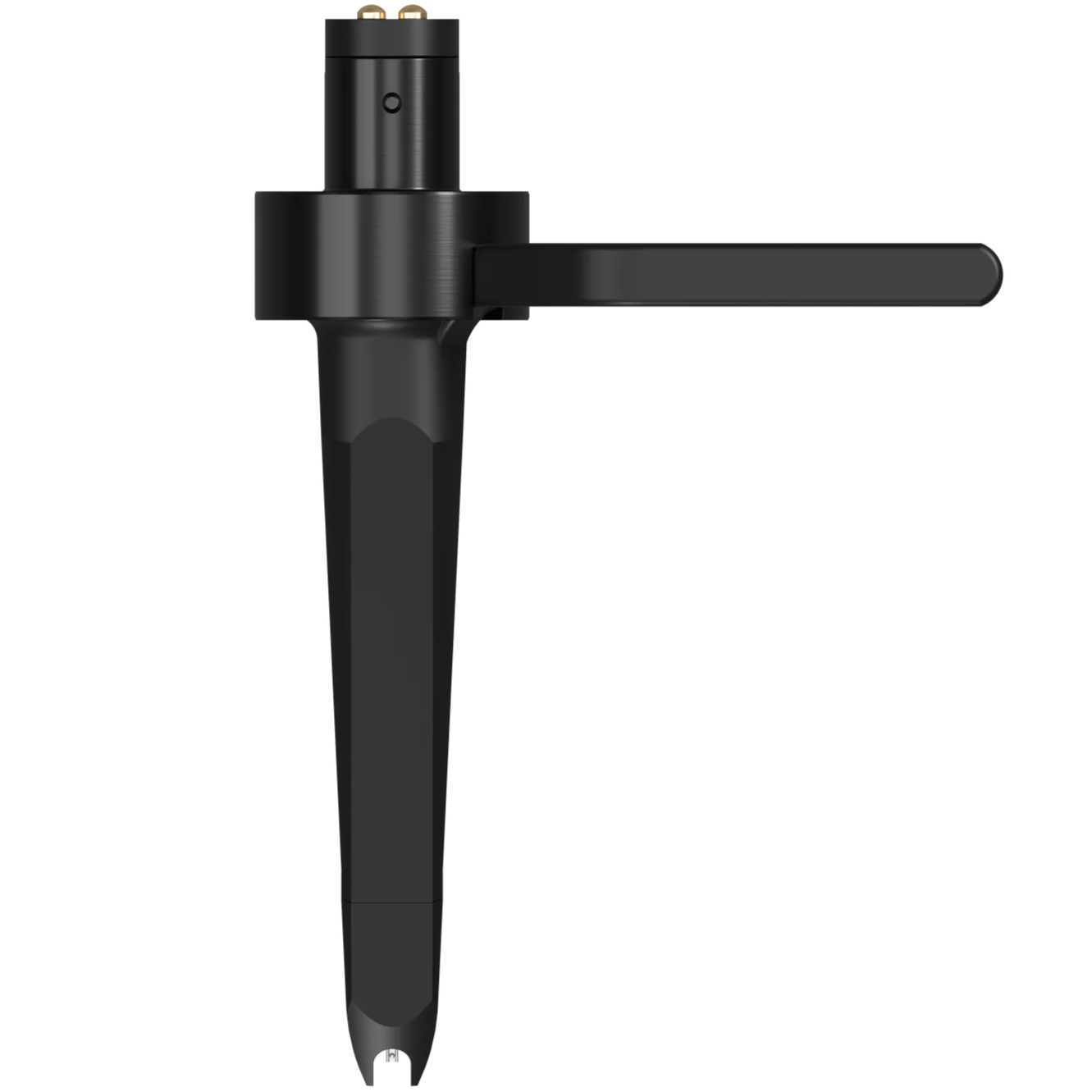

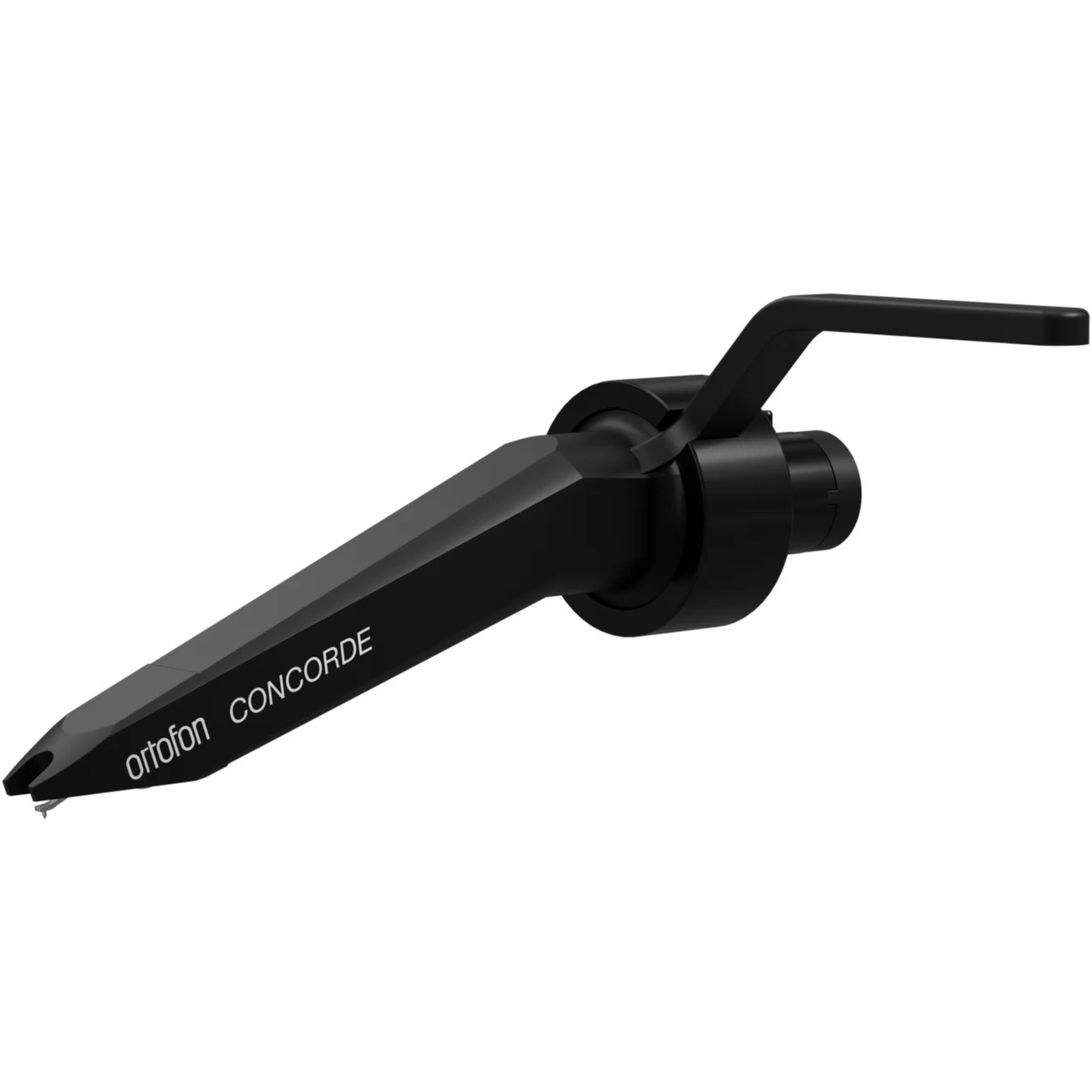

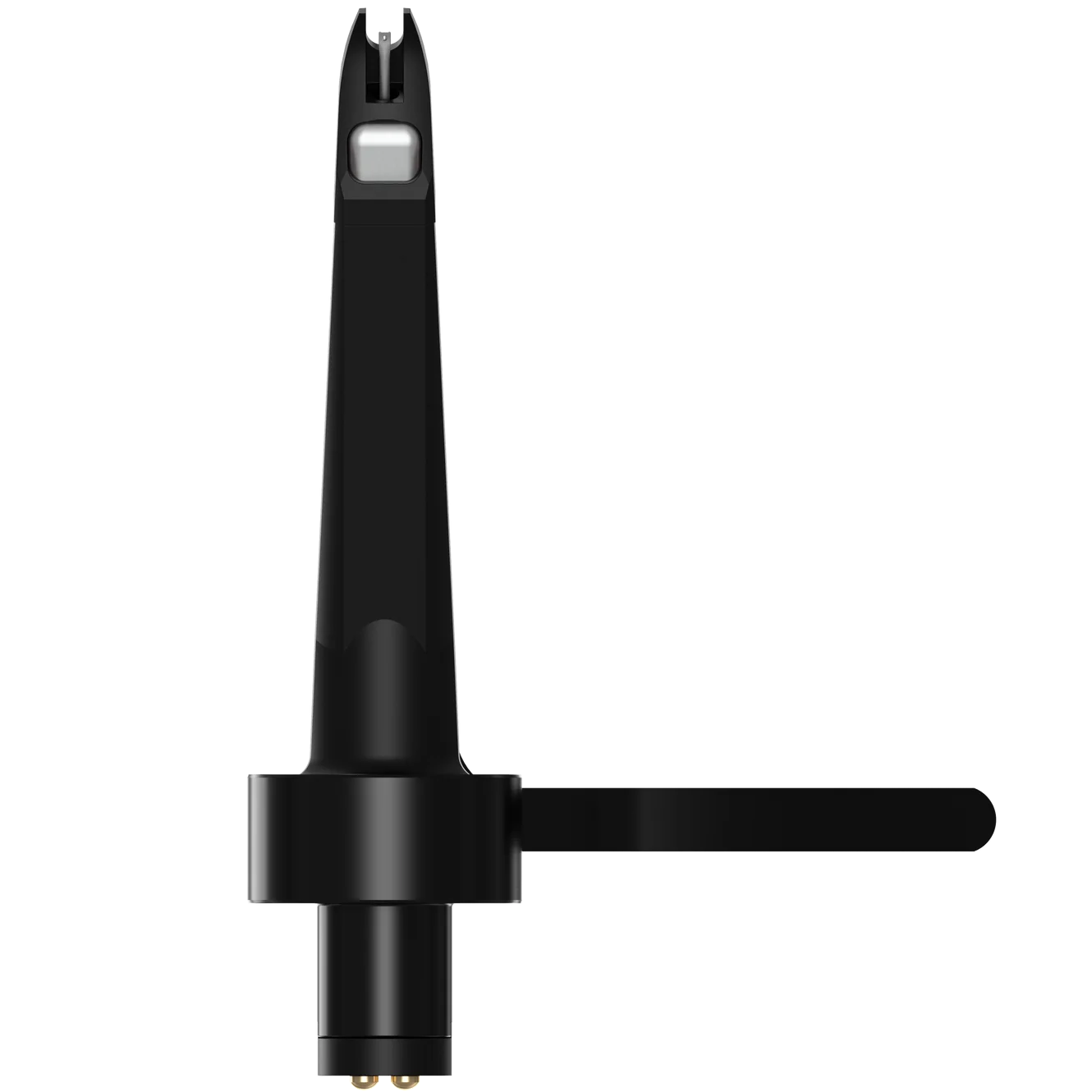

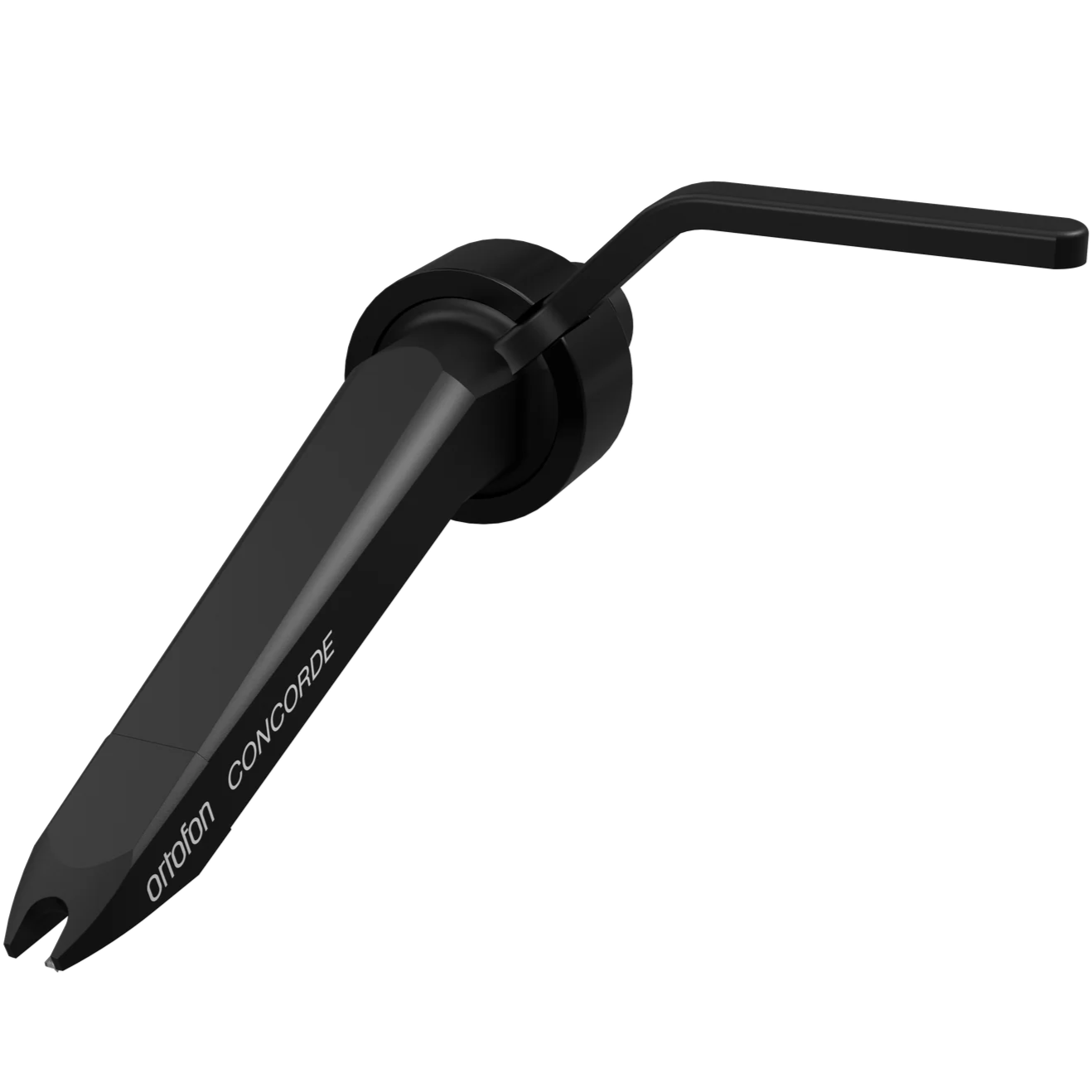

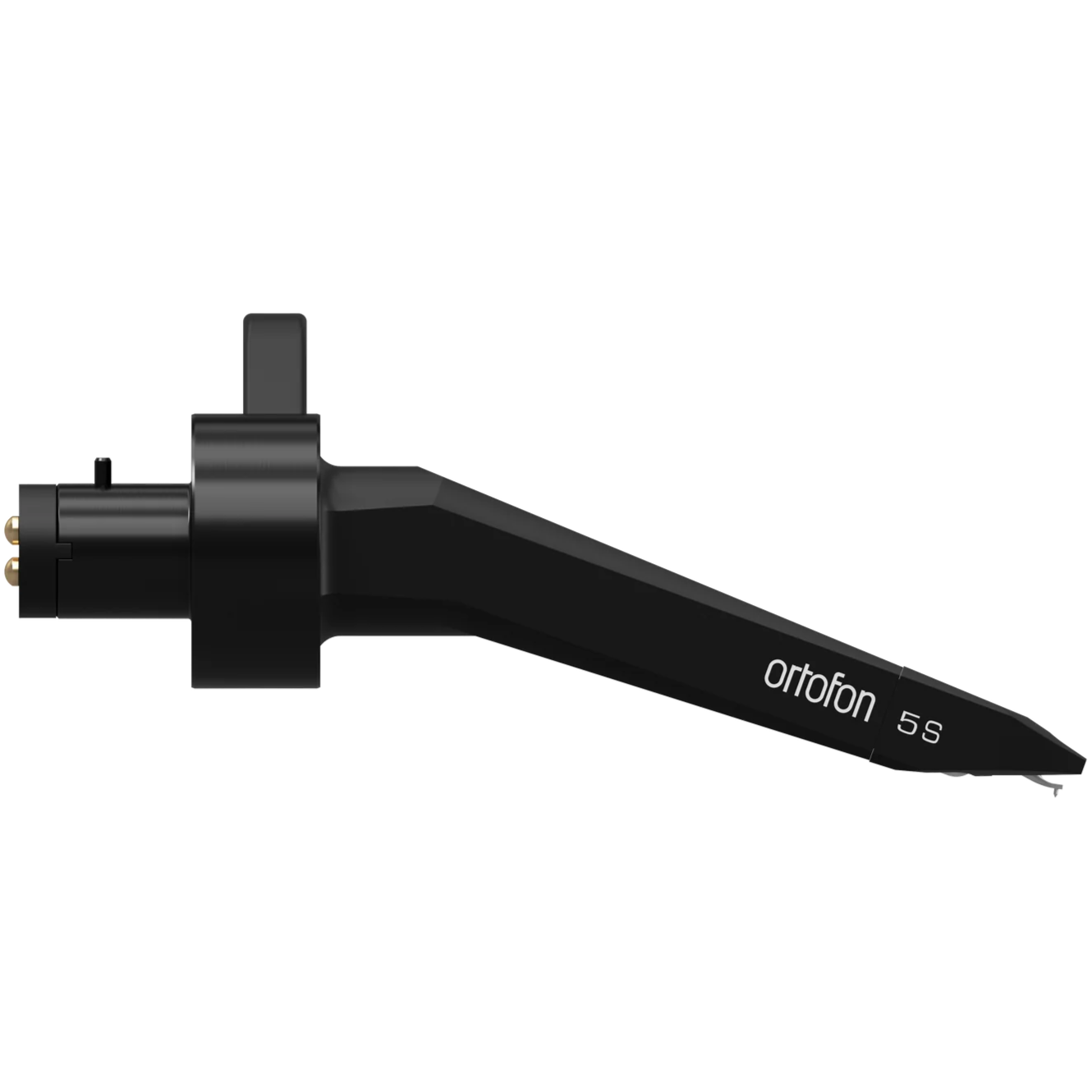

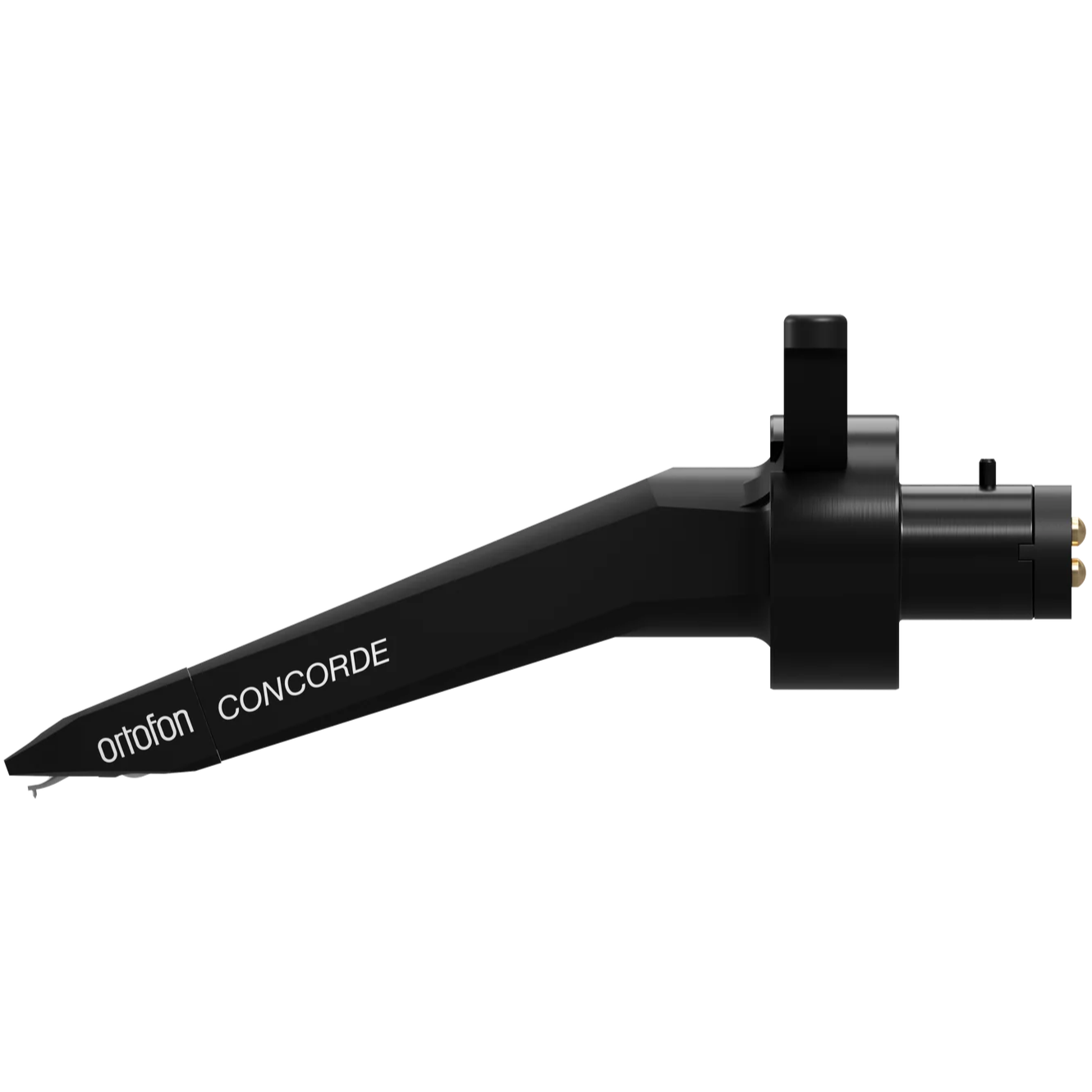

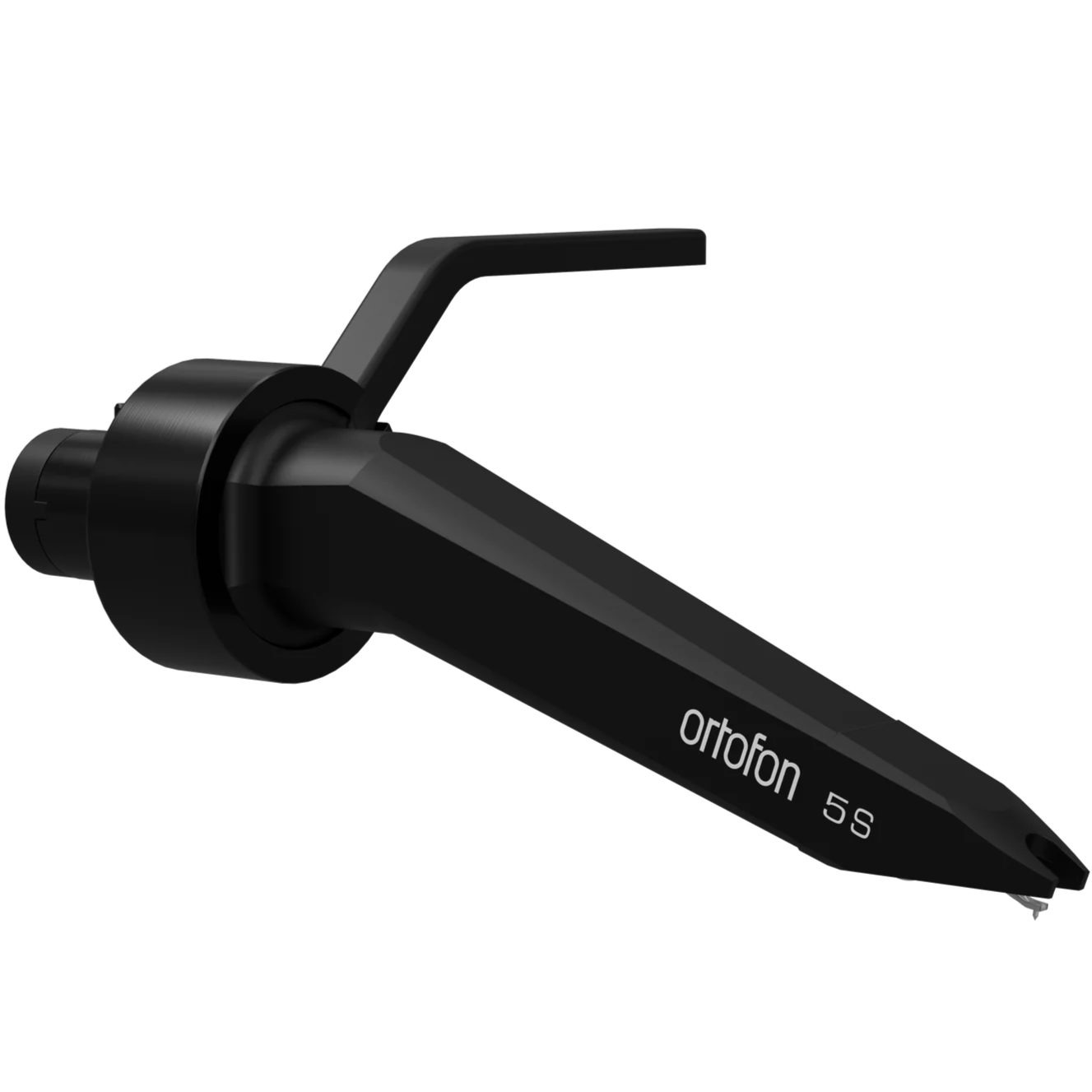

Ortofon Concorde 5S Cartridge

The Ortofon Concorde 5S is designed for easy setup and reliable performance, making it a solid choice for casual and frequent vinyl listeners. Its spherical diamond stylus ensures stable tracking, durability, and consistent sound reproduction without the need for complex adjustments—available at Soundium.

Quick Specs

• Stylus type: Spherical diamond
• Frequency response: 20 Hz – 20 kHz (+/- 3 dB)
• Output voltage: 4.5 mV (at 1 kHz, 5 cm/sec)
• Channel balance: < 2 dB at 1 kHz
• Channel separation: > 20 dB at 1 kHz
• Compliance, dynamic, lateral: 20 µm/mN
• Tracking force (recommended): 1.8 g
• Cantilever: Aluminium
• Internal impedance: 750 Ω
• Coil wire: OFC
• Cartridge weight: 18.5 g
• Colour: Black
• Recommended load resistance: 47 kΩ

What’s in the Box

• Ortofon Concorde 5S Cartridge
