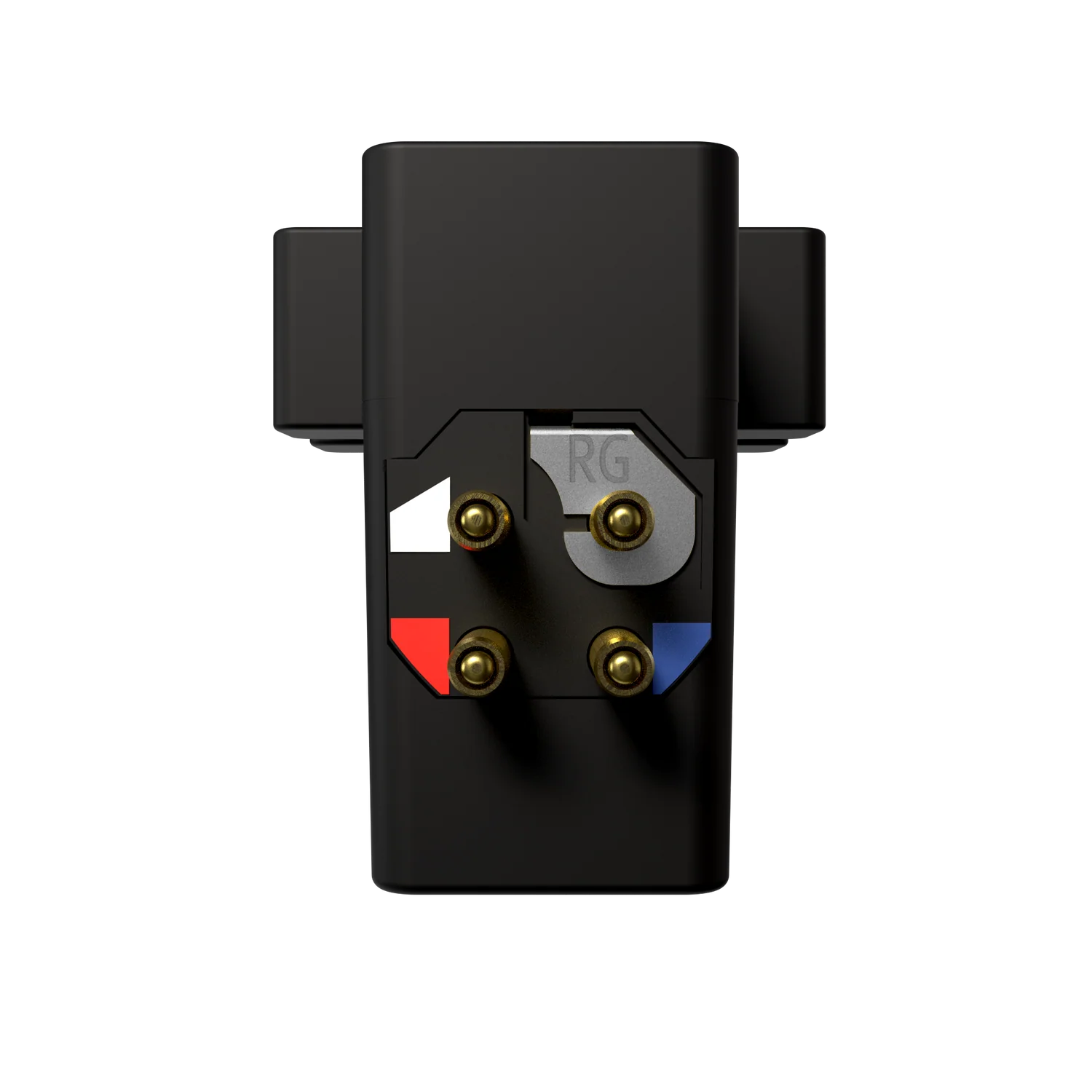

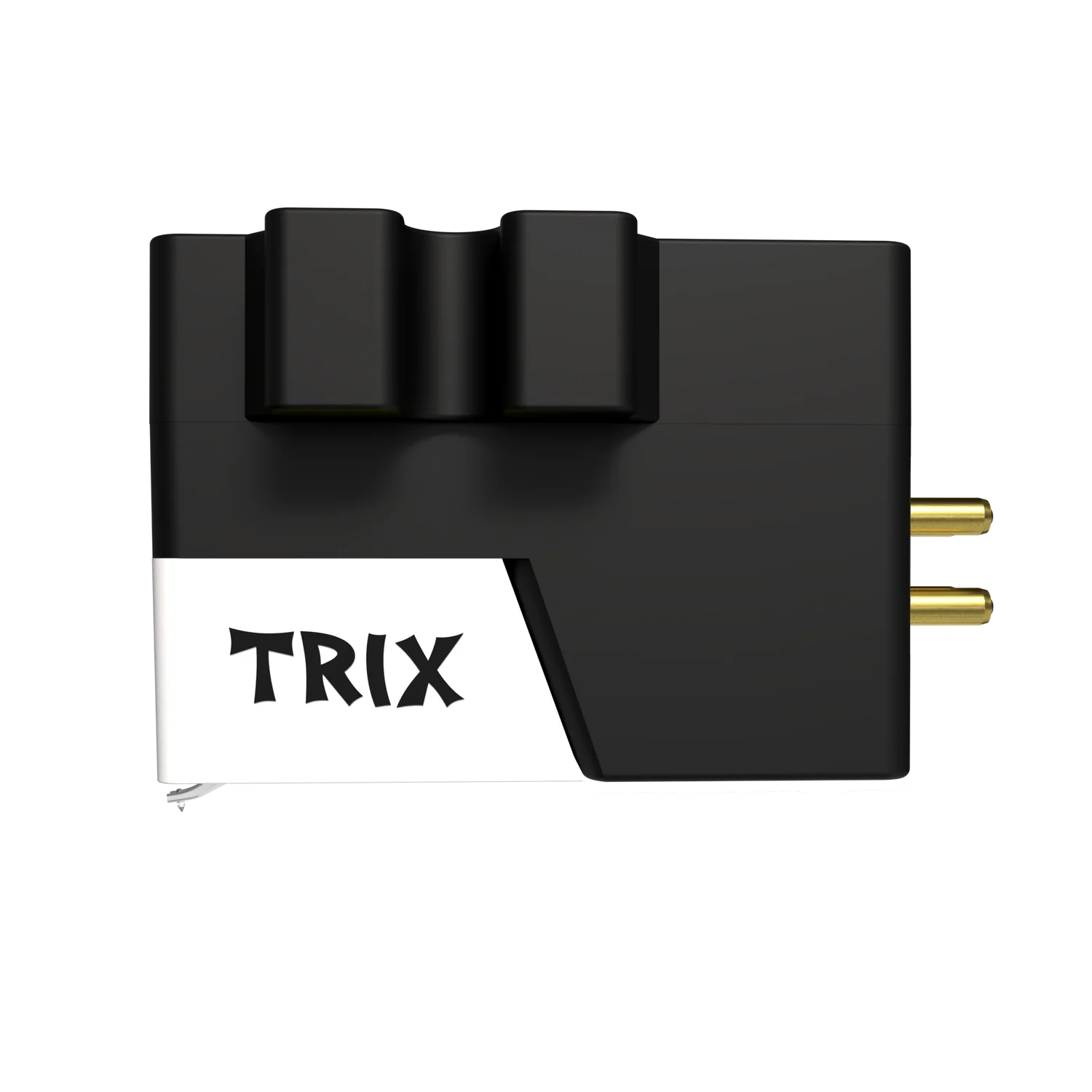

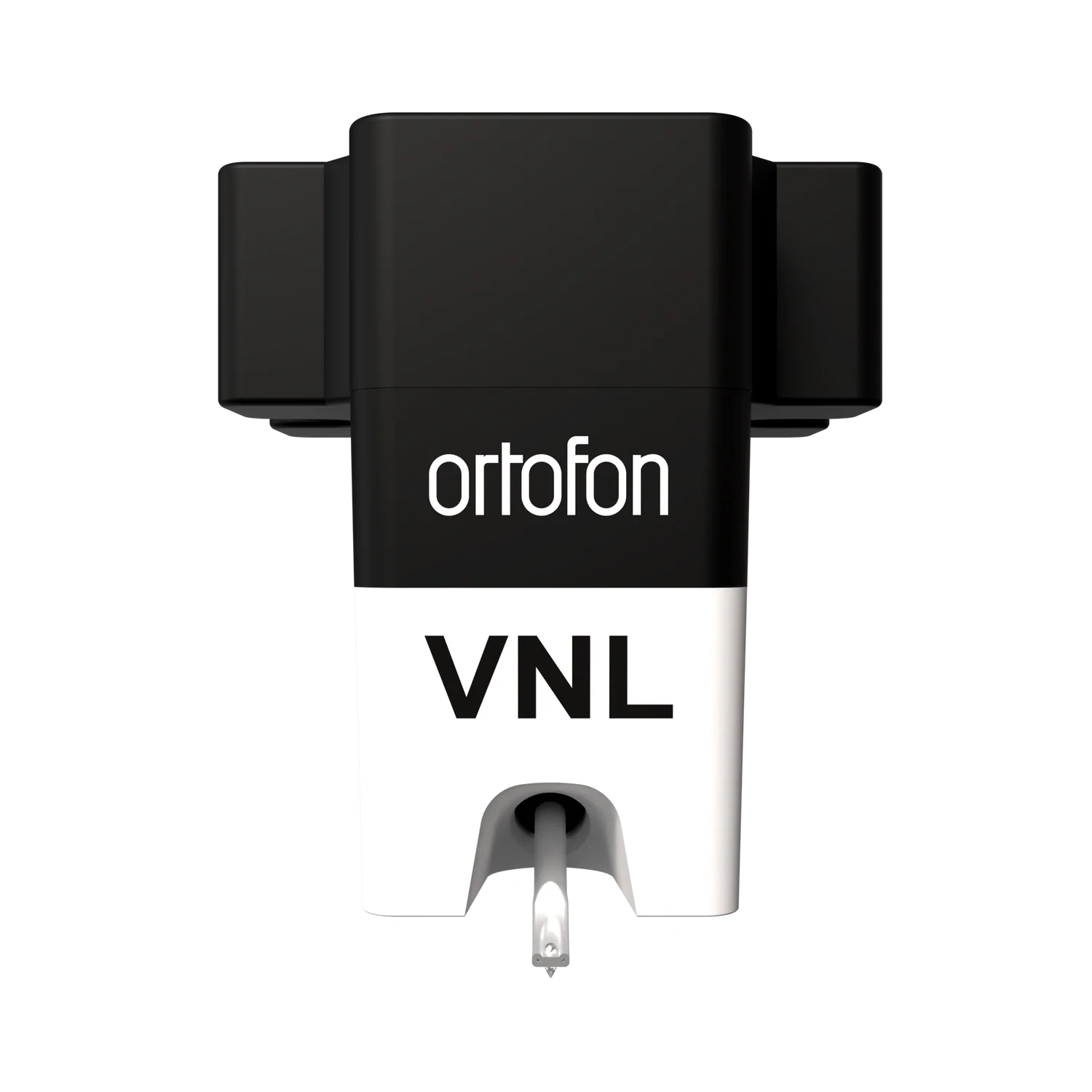

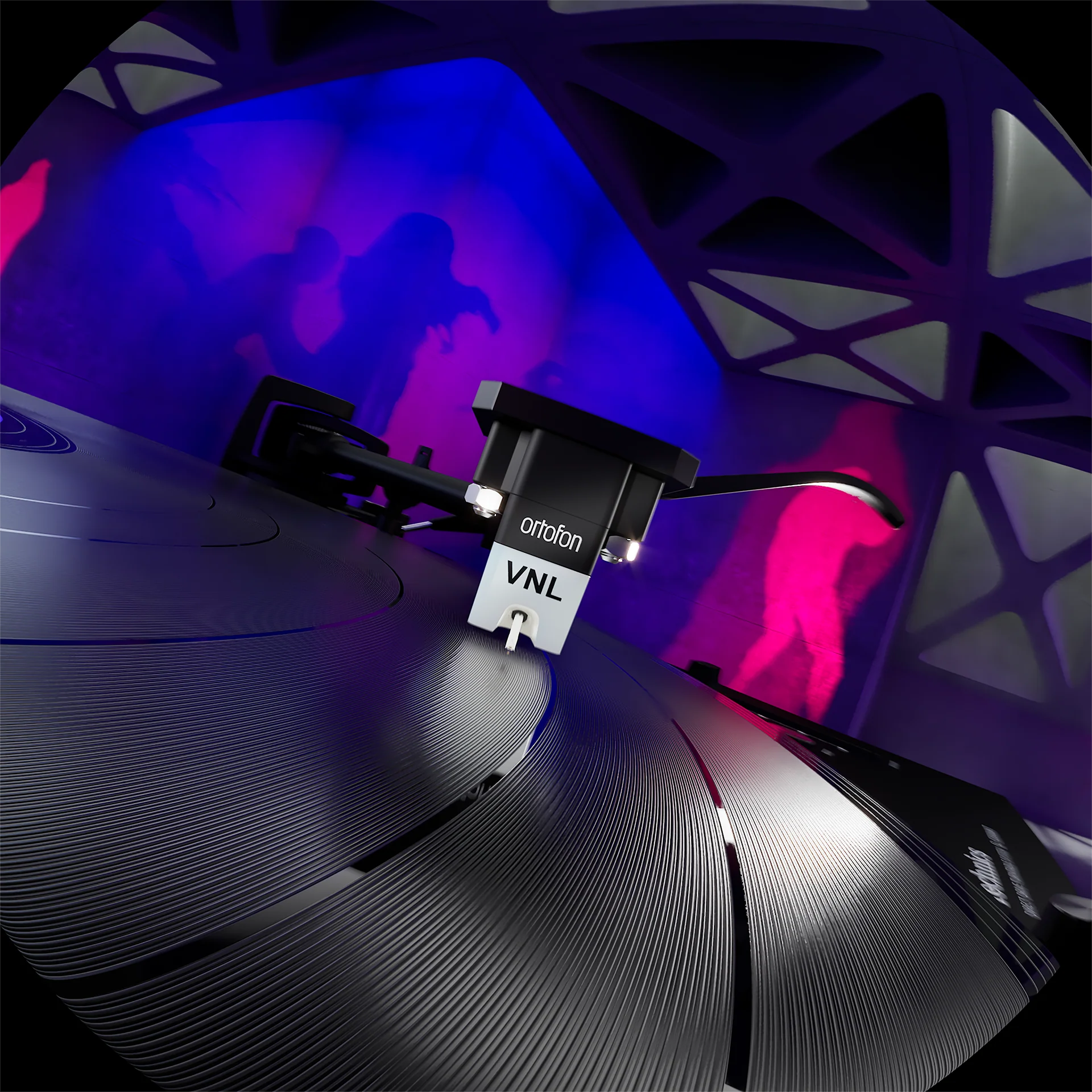

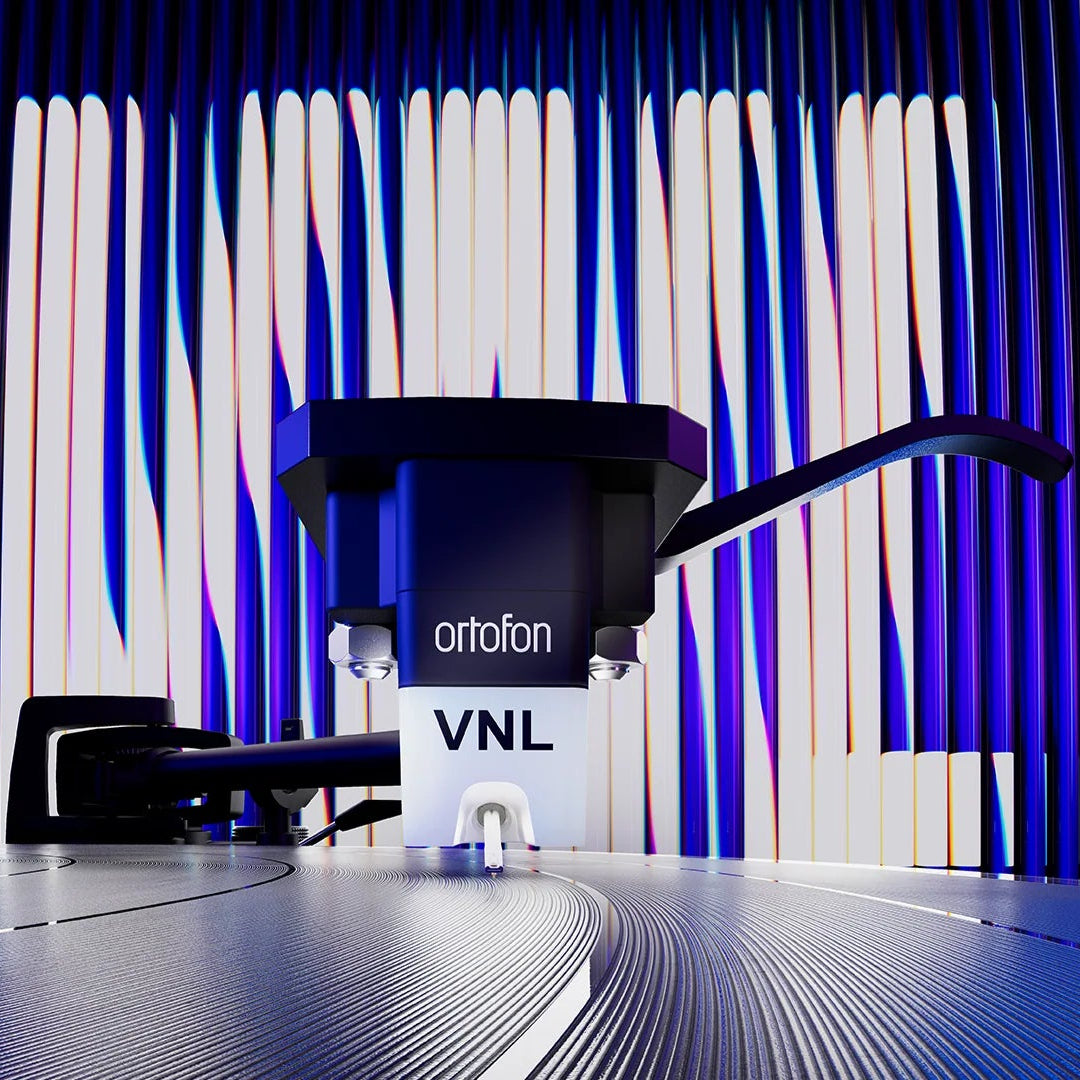

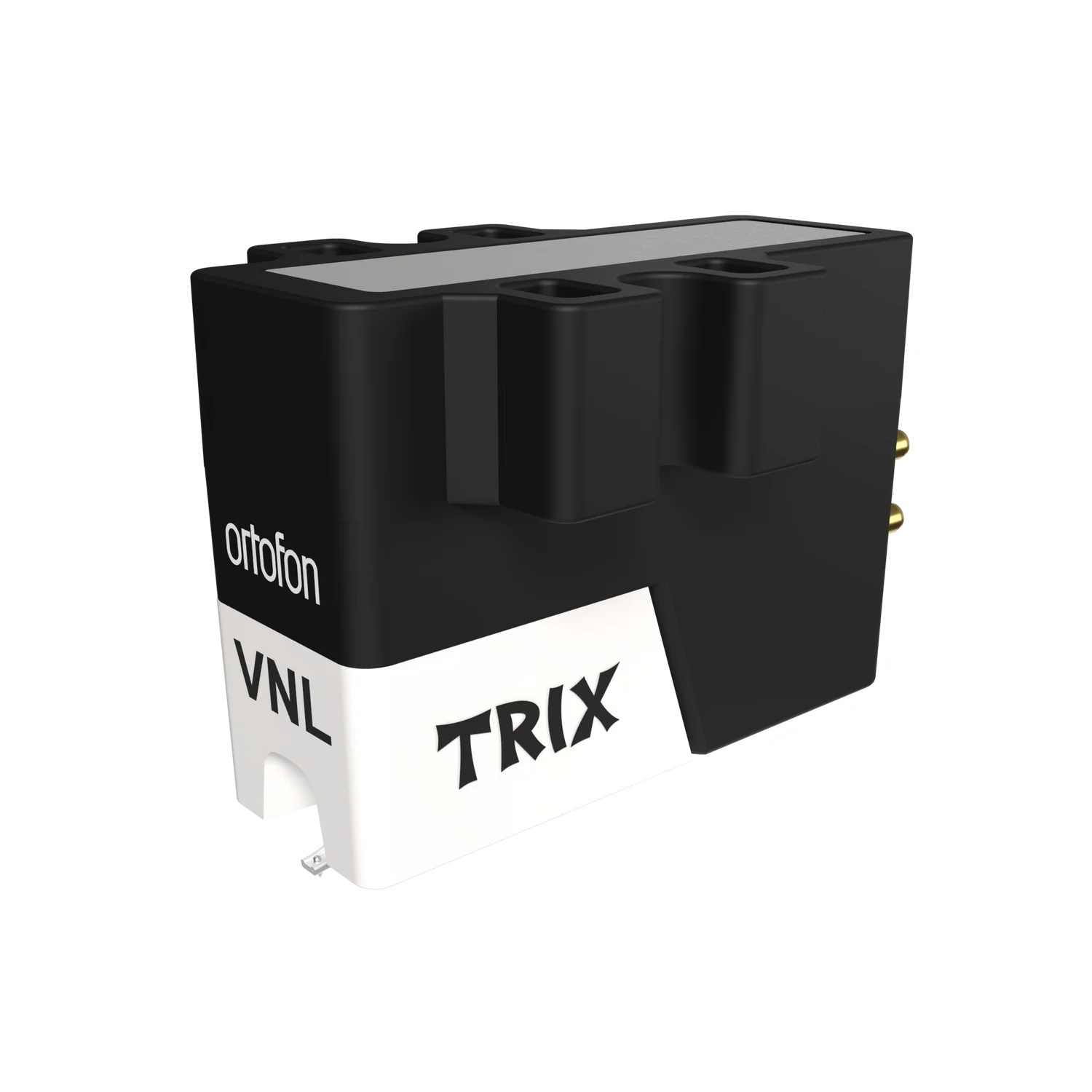

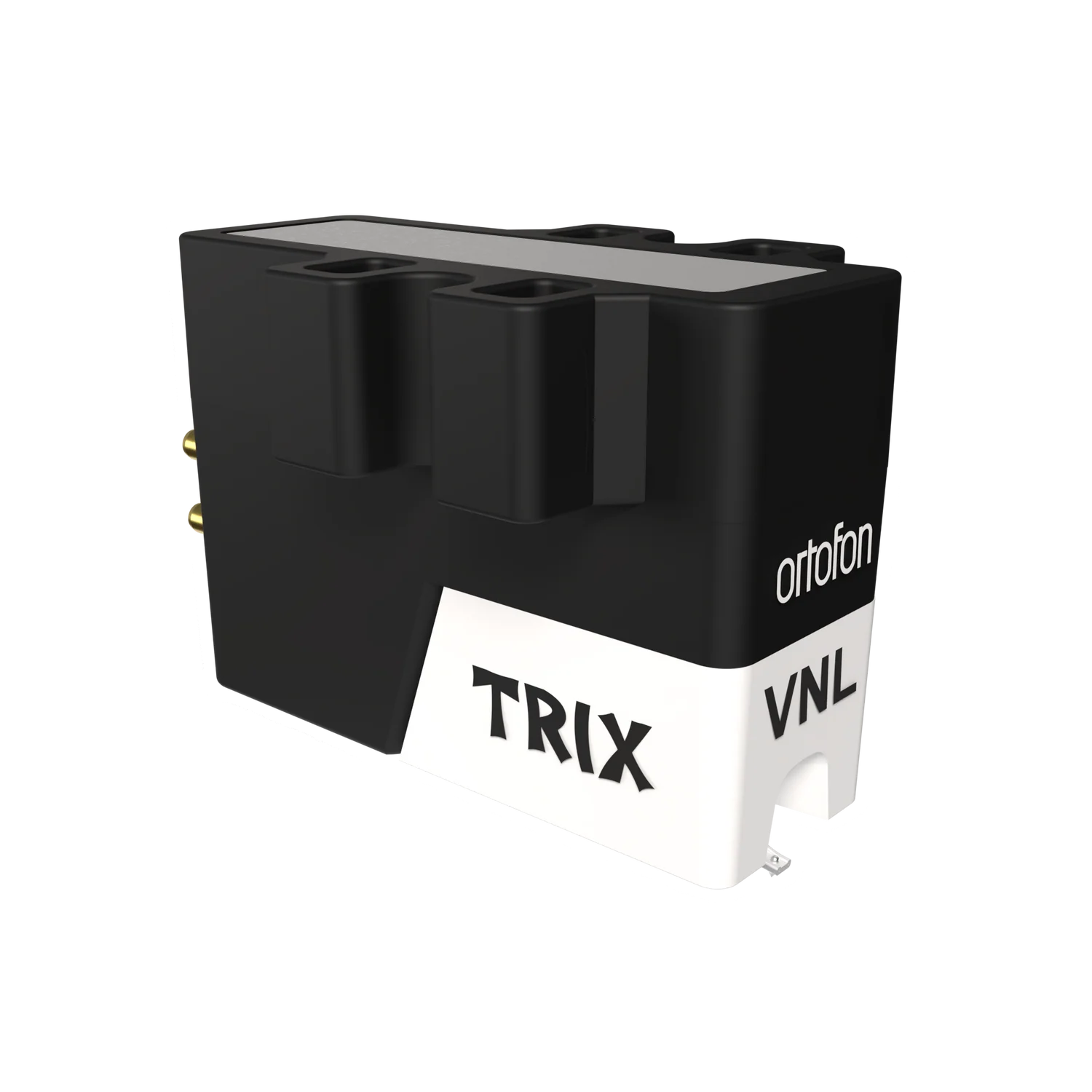

Ortofon VNL TRIX Cartridge

The Ortofon VNL TRIX is built for DJs who push limits—loud, clean, and powerful. With a massive 10 mV output, a rugged spherical stylus on a rigid aluminum cantilever, and Ortofon’s exclusive suspension system, it delivers rock-solid tracking and unbeatable clarity even during heavy scratching and back-cueing. Its fluorescent white stylus glows under UV light for easy cueing on dark stages, making it a reliable cartridge for clubs, festivals, and battle DJs.

Quick Specs

• Output Voltage (1kHz, 5cm/sec): 10 mV
• Tracking Ability (315Hz): 100 μm
• Stylus Type: Spherical
• Stylus Tip Radius: R 18 μm
• Cantilever Material: Aluminium
• Coil System: Quad coils (OFC wire)
• Channel Separation (1 kHz): 22 dB
• Frequency Response: 20 Hz – 20 kHz (+/- 3 dB)
• Dynamic Lateral Compliance: 12 μm/mN
• Recommended Tracking Force: 4.0 g
• Cartridge Weight: 7 g

What’s in the Box

• Ortofon VNL TRIX Cartridge
• Pre-installed Stylus (Fluorescent White)

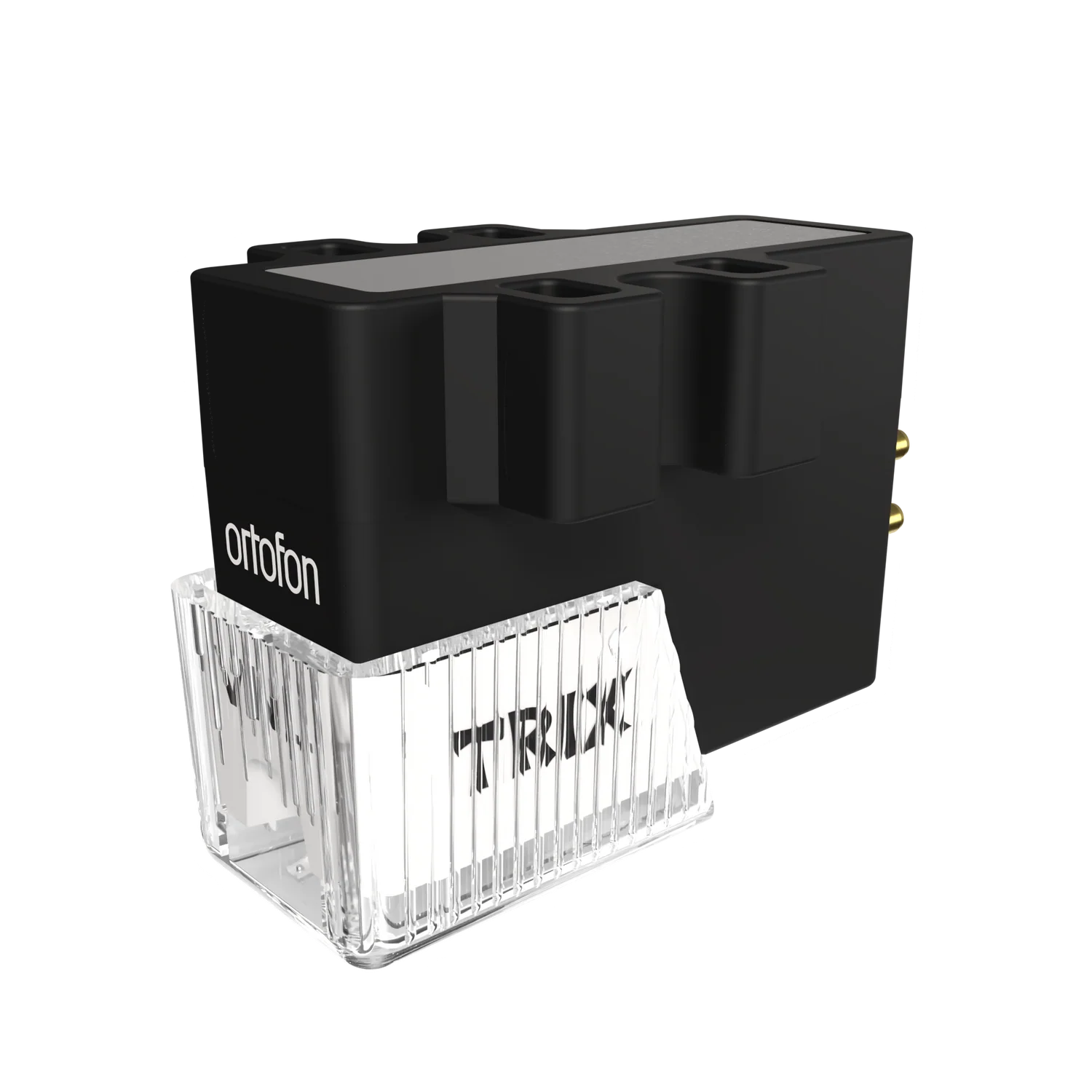

• Protective Stylus Guard
