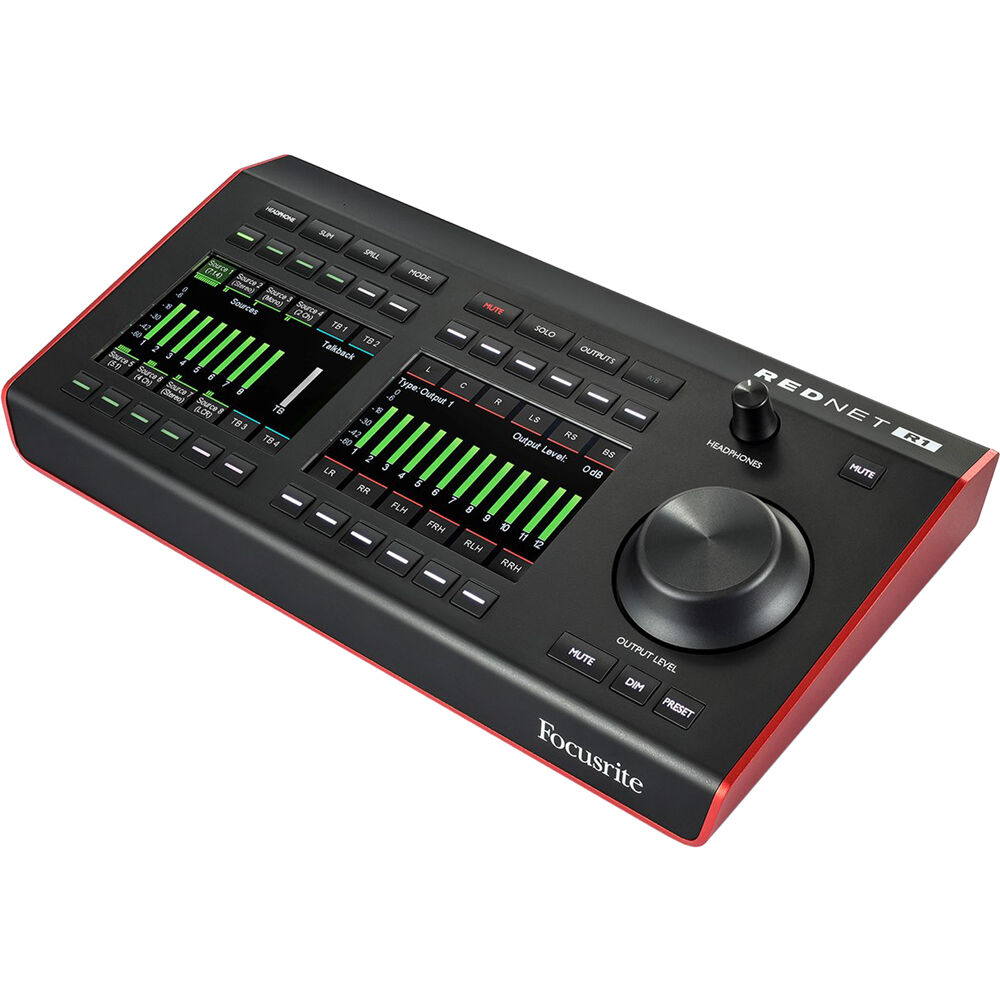

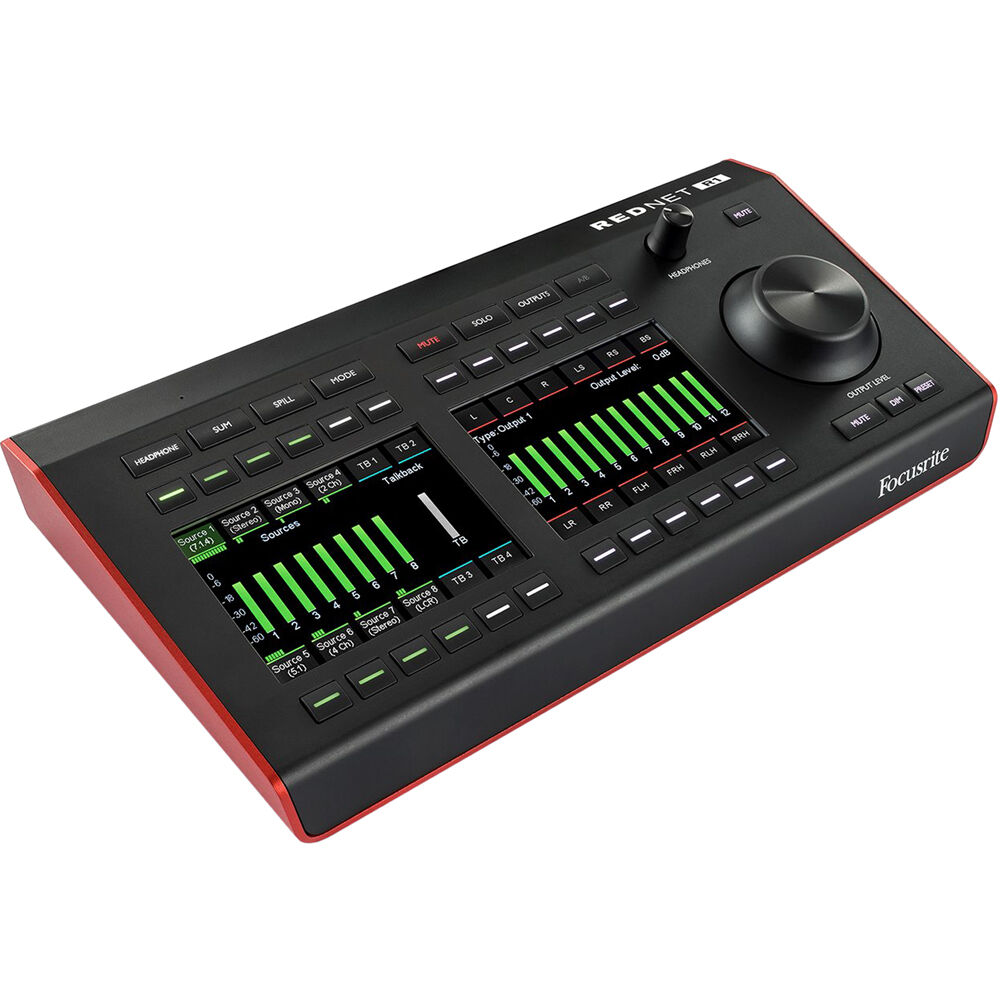

Focusrite RedNet R1 – Professional Monitor Controller for Immersive Studios

RedNet R1 brings complete control to complex audio environments—whether you're mixing in mono, stereo, 7.1.4 surround, or full Dolby Atmos. It consolidates routing, monitoring, talkback, and Dante-powered workflows into one elegant desktop unit—your central creative control hub, available now at Soundium.

Pagrindinės savybės

• Up to 32 sources into 12 monitor outputs: Select and mix from analog, DAW, ADAT, Dante, and more across universalus monitoring layouts—even custom speaker arrays
• Complete monitor control: Adjust level, reference presets, dim, mute, solo, and A/B switching, with fold-down presets for fast downmix testing
• Įmontuotas talkback with Dante routing: Use the internal mic or an external XLR mic, and send talkback to up to four destination groups when paired with a Red interface
• High-fidelity headphone output: Powerful enough for high-impedance cans, routed from any source group for auditioning blind or critical listening

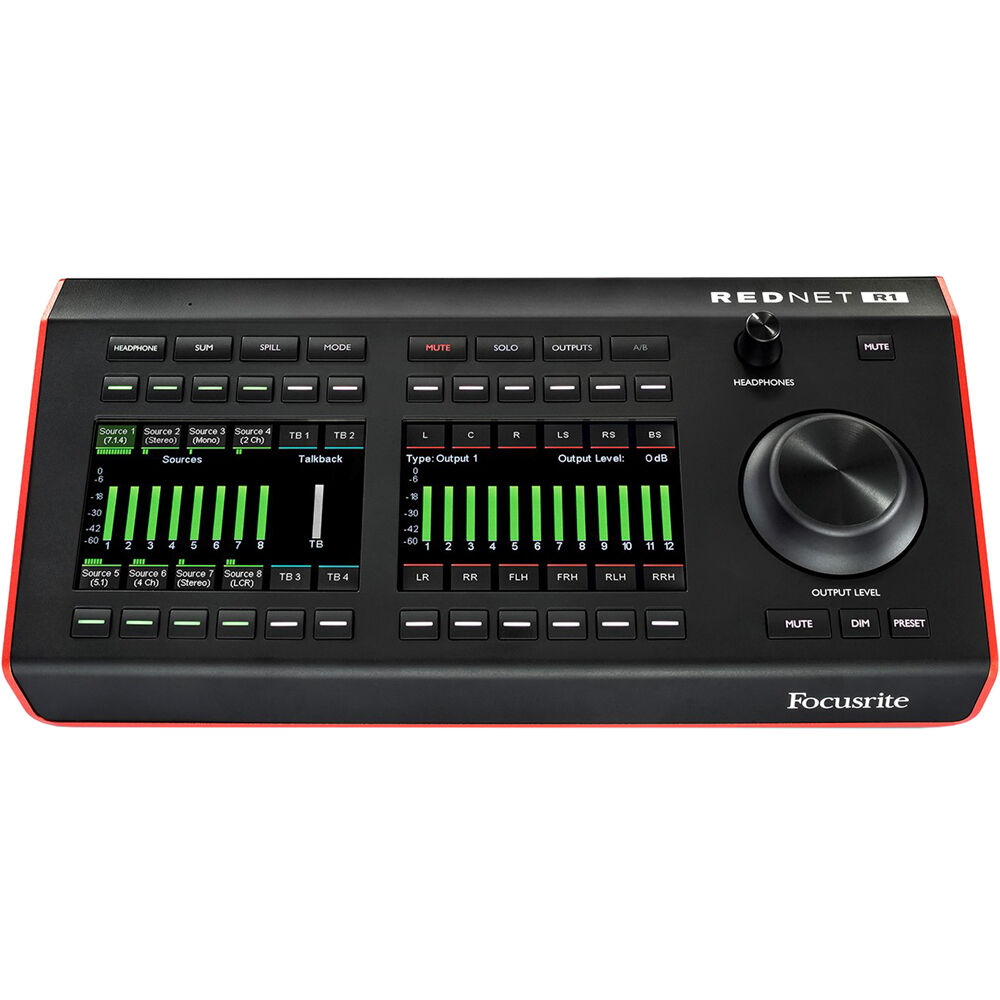

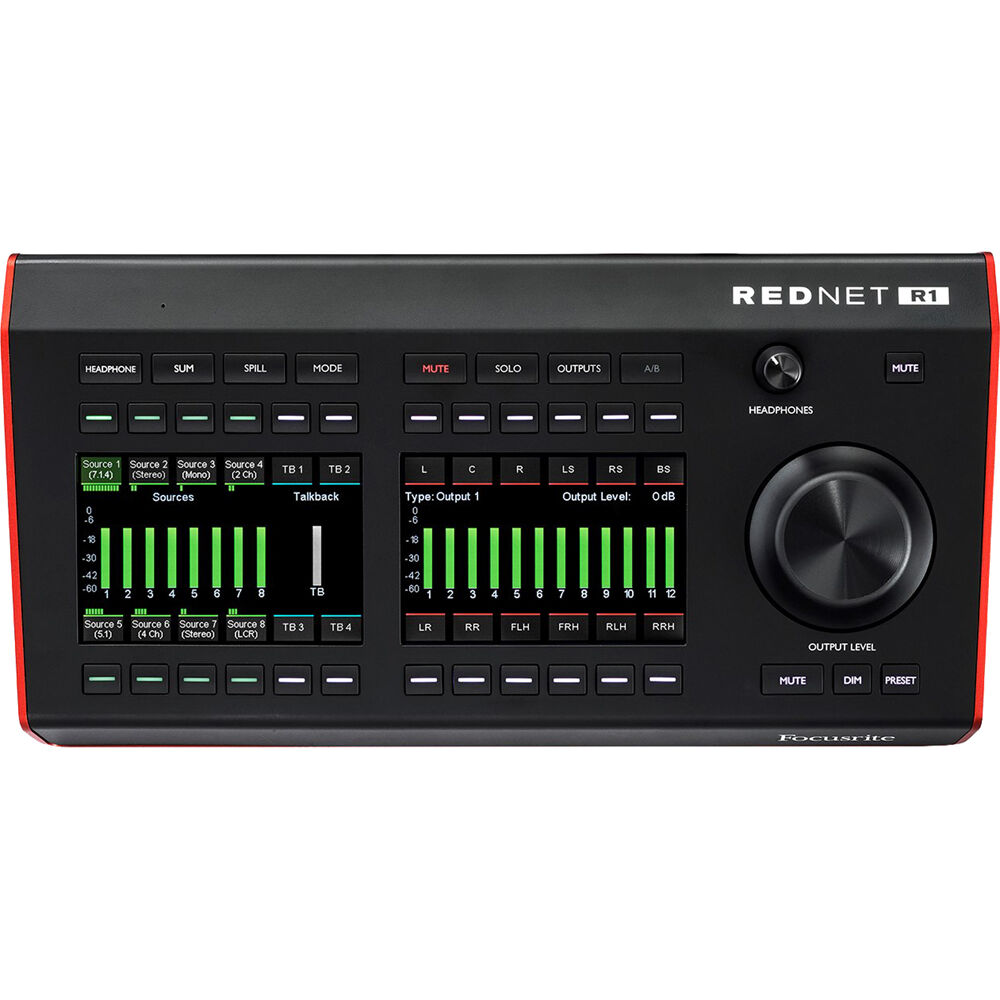

• Dual LCD metering displays: Crisp visuals for monitoring levels, sources, headphone output, and navigating settings with ease

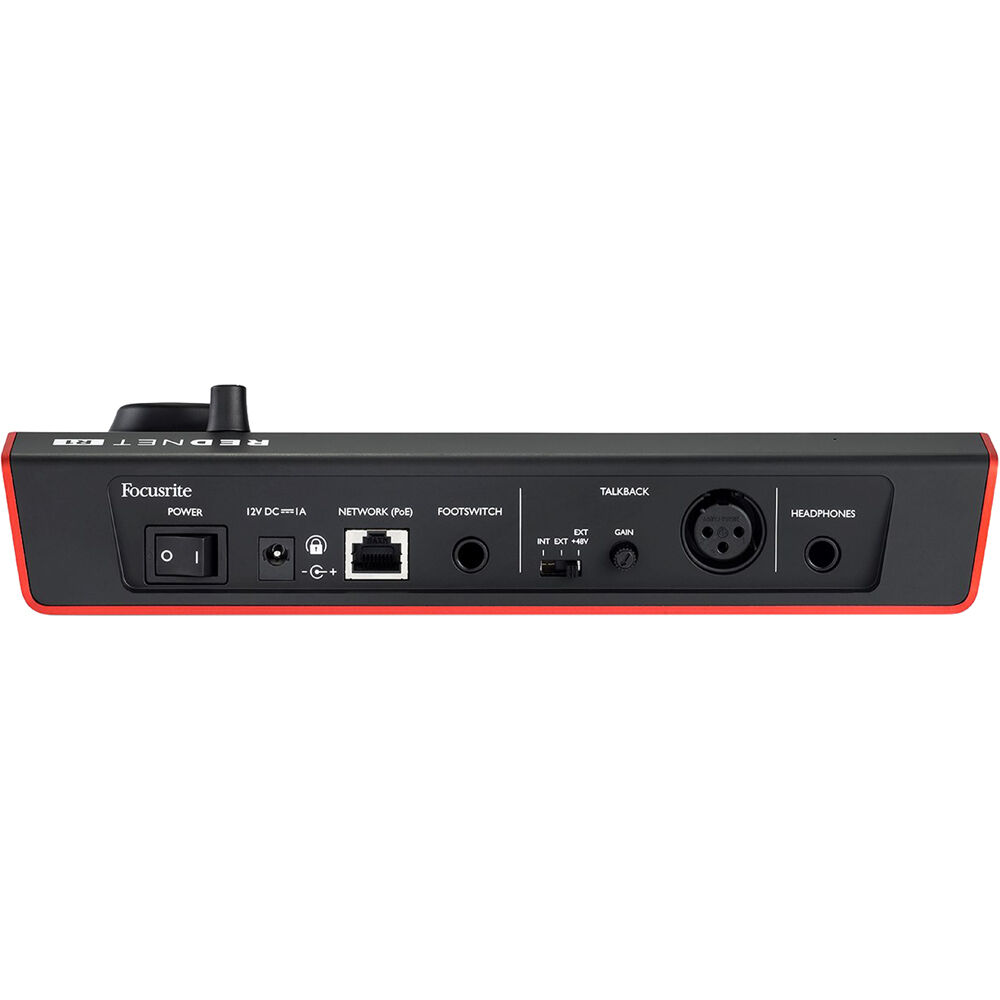

• Flexible power options: Operate via PoE (Power over Ethernet) to simplify cabling, or use the included DC power supply
• RedNet Control 2 software: Set up and manage complex routing and monitor profiles with fast, hardware-centric control
• Footswitch input: Assign talkback, LFE muting, or other actions to a footswitch for hands-free control

Customer Benefits

RedNet R1 delivers streamlined control over immersive and multi-format monitoring without cluttering your workflow with software menus. Swap between speaker layouts or check mixes quickly with physical buttons and visual feedback. Integrated talkback and remote mic preamp control keep your desktop clear while putting control right at your fingertips. PoE support means cleaner setups with fewer cables—puikiai tinka professional studios and post facilities alike.

Trumpa specifikacija

• Source Groups: Up to eight groups, each with up to 12 channels (max 32 sources total)
• Monitor Outputs: Up to 12 configurable outputs; supports mono, stereo, 7.1.4, Dolby Atmos, or custom setups
• Talkback: Internal mic and rear XLR input with phantom power; up to four destination groups with Red interface
• Headphone Output: ¼″ jack, high power, independent level/mute control
• Displays: Dual high-resolution LCDs for source and output metering and menu navigation
• Controls: Level knob, headphone volume, soft-buttons, Dim/Mute/A-B/Solo/Mute functionality, fold-down presets
• Maitinimas: PoE (Power over Ethernet) or 12 V DC included
• Footswitch Input: ¼″ jack for talkback or LFE mute control
• Dimensions (W×H×D): ~265 × 58 × 135 mm
• Svoris: ~0,9 kg

What’s in the Box

• RedNet R1 desktop controller
• PoE-enabled Ethernet cable
• 12 V DC power supply
• Quick-start and safety documentation

Use Cases / Ideal For

Puikiai tinka immersive mixing, post-production, broadcast, and Dolby Atmos studios. Puikiai tinka facilities using Red interfaces, offering instant hardware control for monitoring environments, talkback workflows, and source selection without needing to touch your computer or DAW.

Suderinamumas

Works seamlessly with Focusrite Red-series interfaces (Red 4Pre, 8Pre, 8Line, 16Line) via Dante, Pro Tools HD, or Thunderbolt workflows. Controlled and configured using RedNet Control 2 software on Mac or PC, with full tactile integration into networked audio systems.

Pros & Cons

✅ Privalumai:

• Hardware-based control over complex monitor setups saves time
• Supports up to immersive Dolby Atmos formats with visual feedback
• Integrated talkback and headphone routing enhance communication and monitoring
• PoE support keeps desk area tidy and powered with one cable

⚠️ Trūkumai:

• Requires a Red-series interface to fully unlock talkback and source routing
• High feature density may require setup time to tailor to your workflow
• Sukurtas desktops—less suitable for compact mobile rigs

Focusrite RedNet R1 empowers mix engineers and post facilities with hands-on, immersive-format monitor control and talkback management—all from a streamlined desktop interface. It’s the smart, centralized hub your studio needs—now at Soundium.
