Empirical Labs EL8X Distressor – The Ultimate Analog Compressor

The Empirical Labs EL8X Distressor is a studio-standard VCA compressor renowned for its tonal versatility and expressive character. With a wide palette of ratios, saturation modes, and intelligent dynamics, it adapts to any source—from subtle enhancement to aggressive control—making it the go-to choice for professionals worldwide, carefully presented by Soundium.

Key Features

• Eight selectable compression ratios: From mild 2:1 to hard 20:1 limiting, plus an “Opto” mode for smooth, program-dependent behavior
• Distortion options: Clean gain control, ‘Dist 2’ (tube-like warmth), and ‘Dist 3’ (tape-style saturation) for tone sculpting
• British mode: Inspired by the “all-buttons-in” trick on vintage 1176s, adding punchy harmonic drive when needed
• Side-chain high-pass filter: Prevents low frequencies from muddying the compression, keeping triggers clean
• Stepped attack and release: Precise, recallable settings—attack from 50 μs to 30 ms, release from 50 ms to 3.5 s (Opto up to 20 s)
• Accurate metering: LED gain-reduction display plus input/output level indicators for real-time feedback

Customer Benefits

The Distressor adds analog warmth, punch, or gentle leveling where needed. Its aggressive and musical compression options make it perfect for drums, vocals, busses, and mastering. Intuitive control, recallable settings, and sonic flexibility ensure it excels in both creative and technical workflows.

Quick Specs

• Frequency response: 2 Hz–160 kHz (±3 dB in clean mode)
• Dynamic range: Approximately 110 dB
• Distortion: 0.02%–20%, depending on mode
• Attack: 50 μs – 30 ms
• Release: 50 ms – 3.5 s; Opto mode up to 20 s
• Input impedance: 20 kΩ; Output impedance: < 75 Ω
• Controls: Stepped input/output, attack, release knobs with gain-reduction LEDs
• Power: ±16 V; typical consumption ~10–14 W

What’s in the Box

• Empirical Labs EL8X Distressor module
• IEC power cable
• Quick start guide and setup reference

Use Cases / Ideal For

Perfect for studios and live setups needing analog compression with vibe. Excels on drum groups, lead vocals, bus compression, and dynamic shaping with personality and precision.

Compatibility

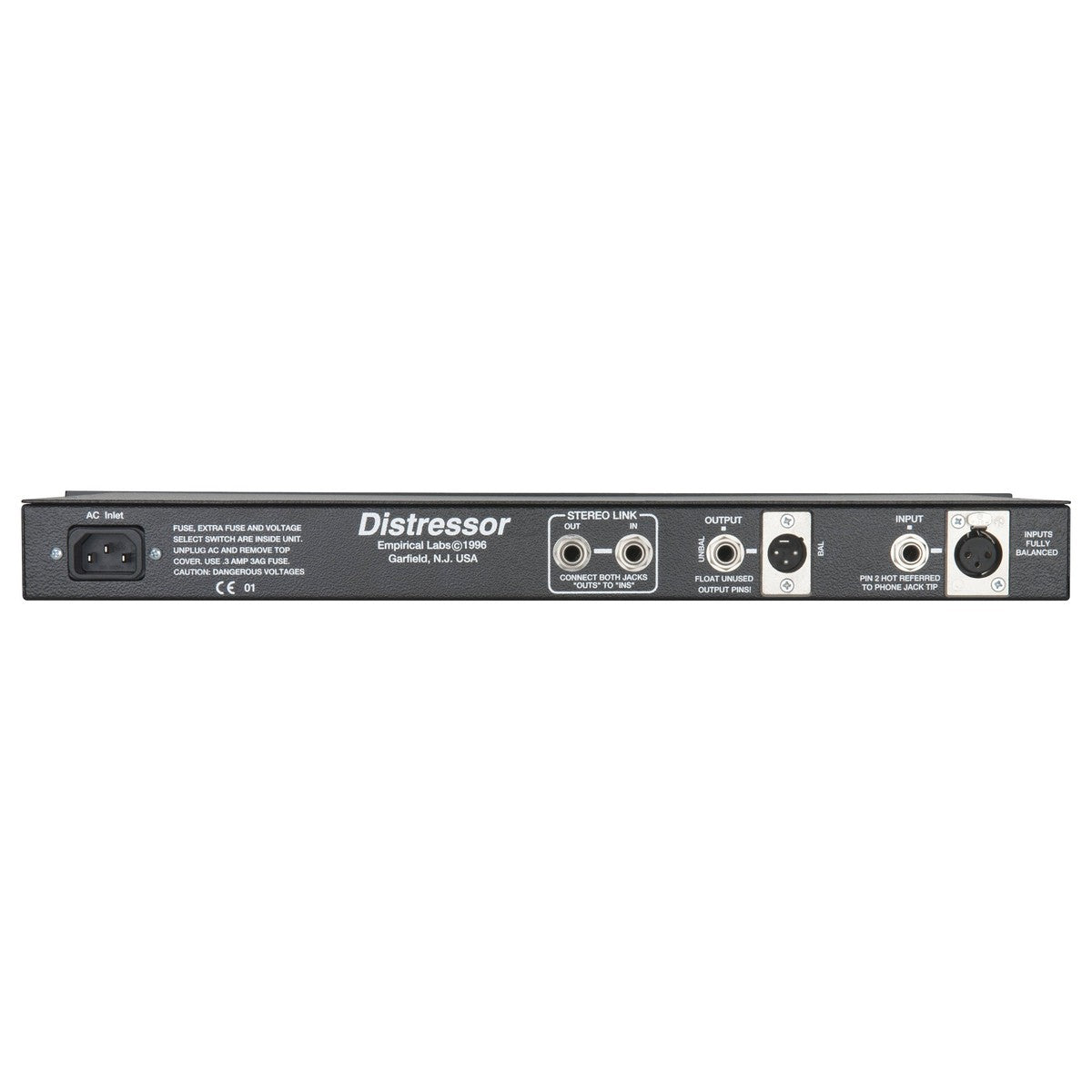

Standard 1U rack unit. Balanced XLR/TRS I/O integrates with recording and mixing environments seamlessly.

Pros & Cons

✅ Pros:

• Iconic analog sound with flexible tonal options
• Stepped controls ensure consistent recall
• Combines clean transparency with rich color modes

⚠️ Cons:

• Single-channel format—requires an additional unit for stereo processing
• No built-in parallel mix control

The Empirical Labs EL8X Distressor brings endless dynamic options and analog character to your signal chain—an essential studio tool, fine-tuned by Soundium.
