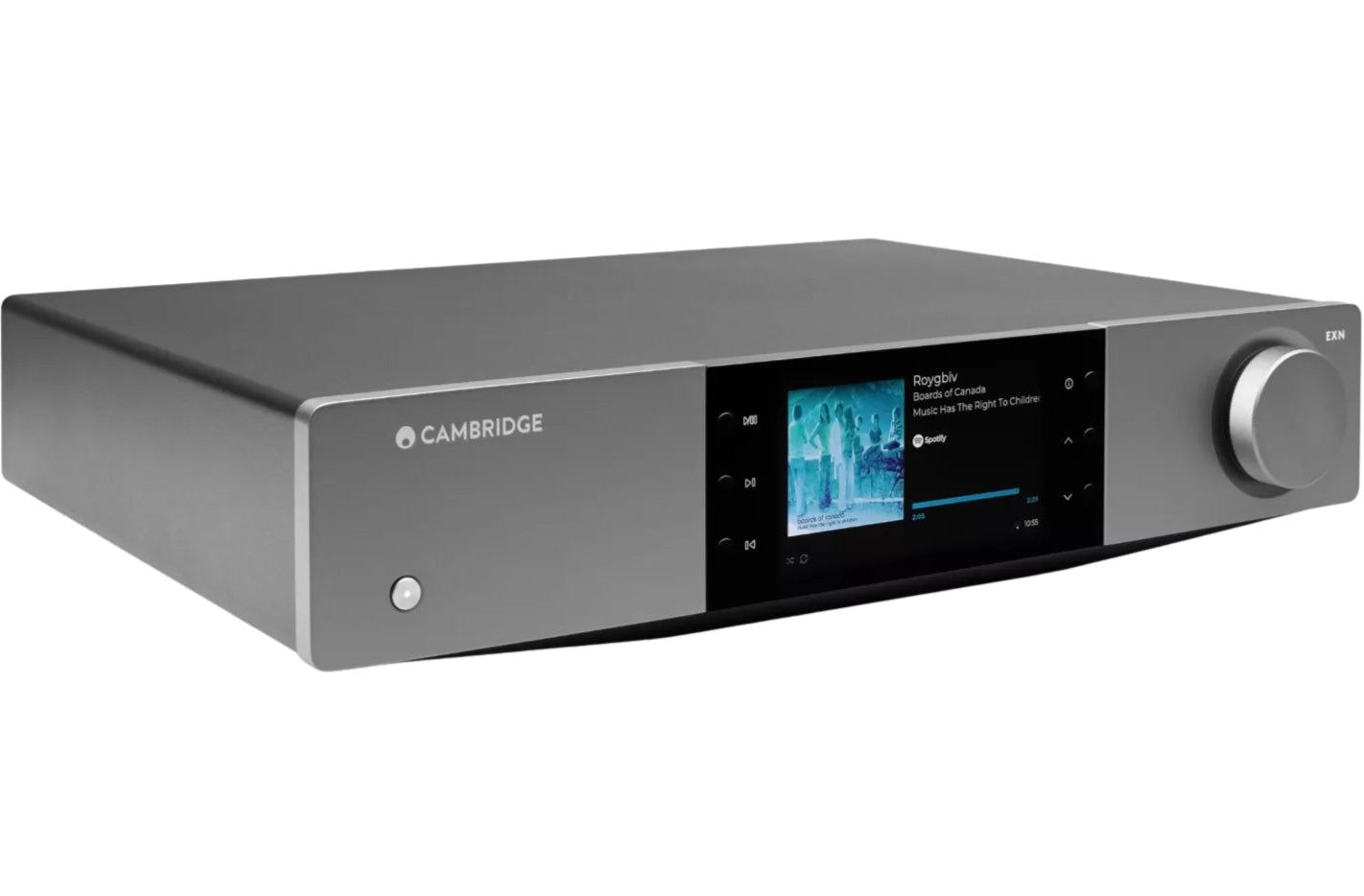

Cambridge Audio EXN100 – Advanced Network Streaming Preamp

The EXN100 redefines modern streaming by blending digital sophistication with refined analogue output. Built around Cambridge’s fourth-generation StreamMagic platform and a high-performance DAC, it delivers flexibility, clarity, and power in one elegant unit.

Pagrindinės savybės

• ESS ES9028Q2M DAC: High-precision conversion supporting PCM up to 32-bit/768 kHz and DSD512
• StreamMagic Gen 4 platform: Provides access to Spotify Connect, TIDAL Connect, Qobuz, Roon Ready, internet radio, UPnP, AirPlay 2, and Chromecast
• HDMI eARC input: Receives two-channel audio from your TV for seamless listening through your hi-fi system

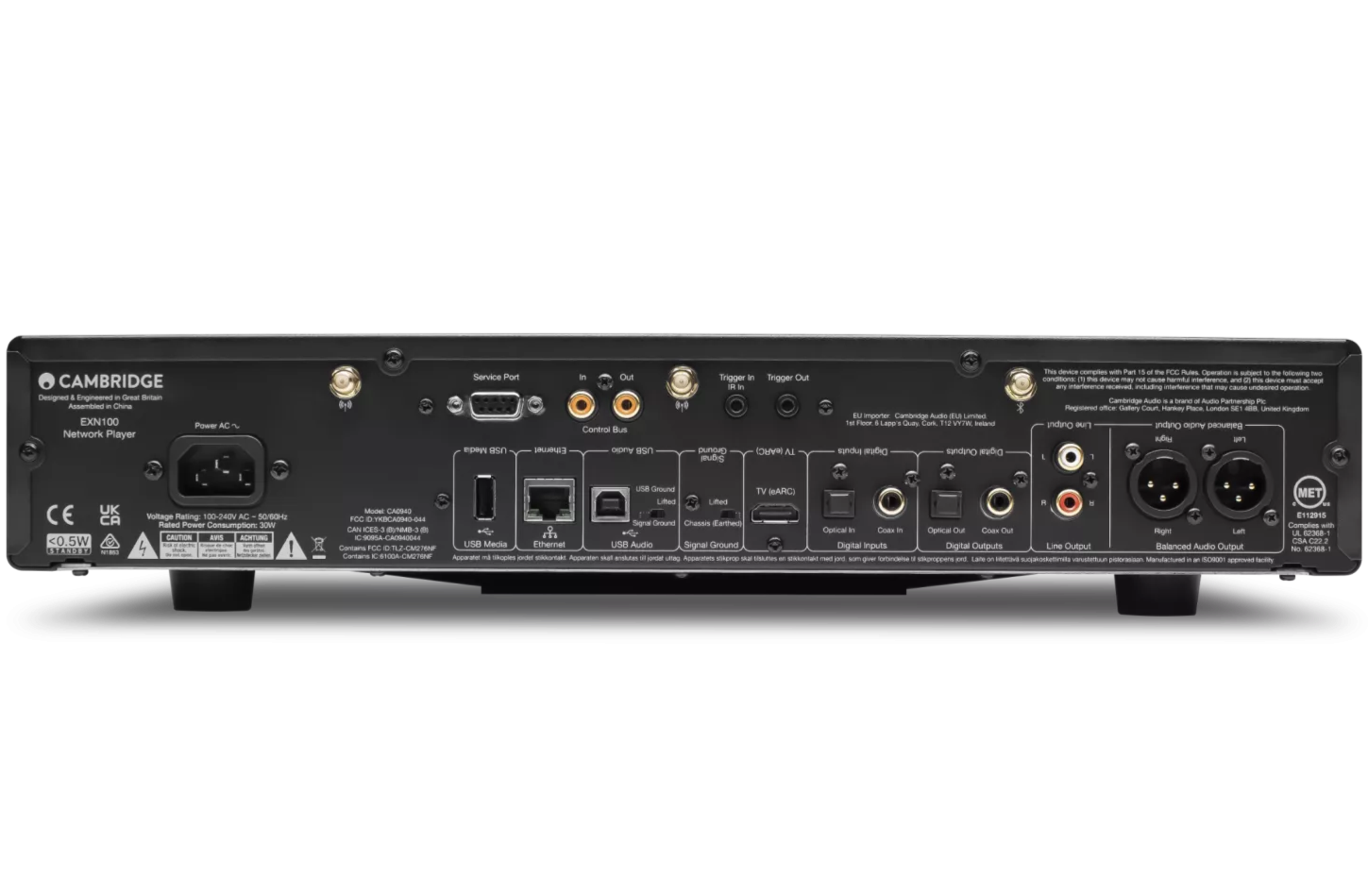

• Rich I/O flexibility: Includes optical and coaxial S/PDIF, USB-B, USB-A (for media drives), Ethernet, and both balanced (XLR) and unbalanced (RCA) outputs
• Preamp mode: Enables volume control and source switching for direct use with power amplifiers or active speakers

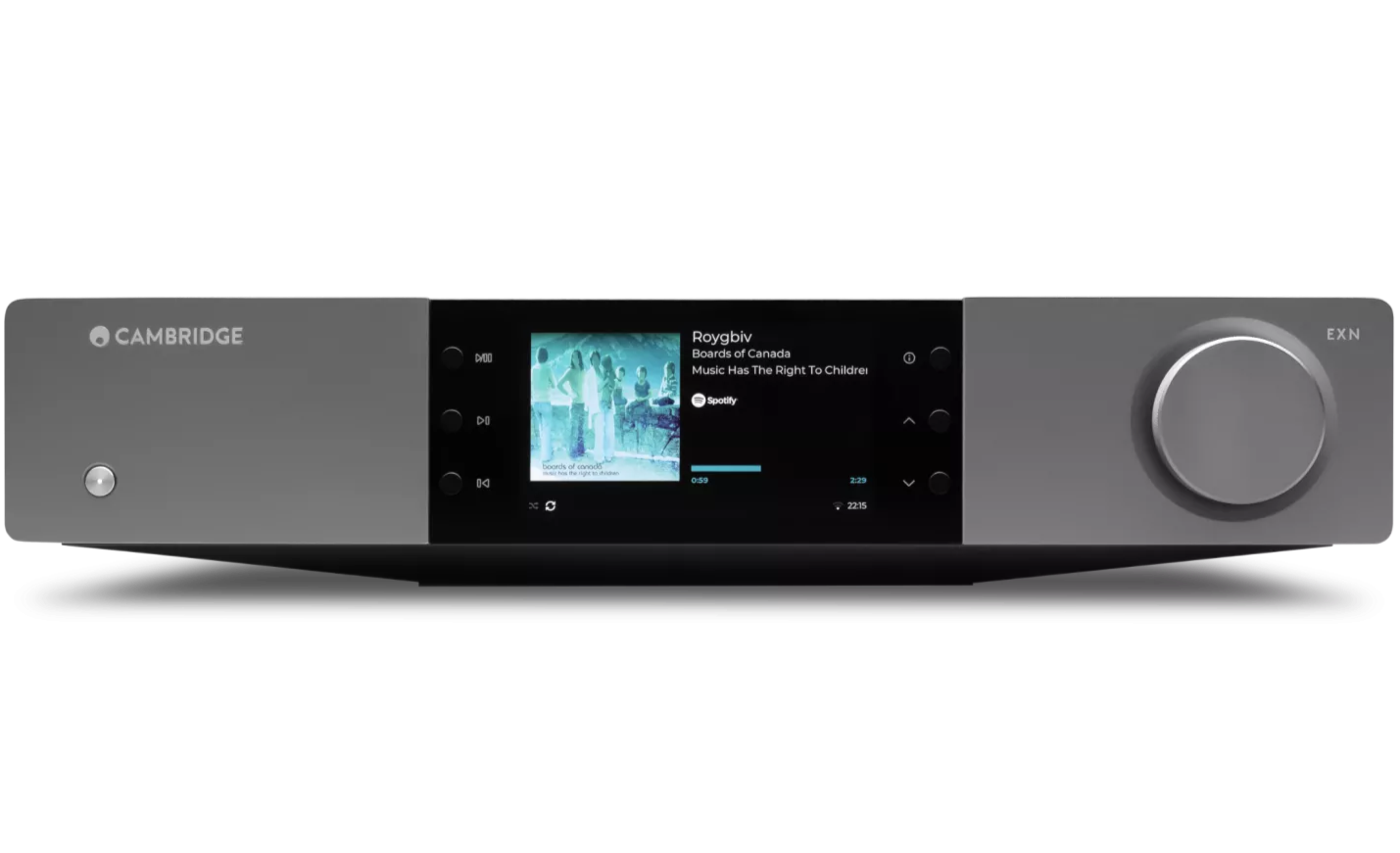

• Large colour display: 4.76" IPS TFT screen (1280 × 569 resolution) shows album art, source data, VU meters and more

Customer Benefits

EXN100 gives you a future-ready streaming hub with room calibration, abundant source compatibility, and preamp usability. It simplifies your signal chain while preserving musical expression and system flexibility.

Trumpa specifikacija

• Matmenys (W × H × D): 43.0 × 9.0 × 30.5 cm
• Svoris: 4.1 kg
• Power consumption: 30 W max, standby < 0.5 W (Eco), network standby ~2 W
• Frequency response: 20 Hz – 75 kHz (+0/–1 dB)
• THD + N: < 0.0005 % at 1 kHz
• S/N ratio (ref. 1 W): > 120 dB
• Streaming formats & systems: 32-bit PCM, native DSD up to x512, MQA, UPnP, AirPlay 2, Chromecast
• Connectivity: Optical, coaxial S/PDIF in/out; USB-B & USB-A; HDMI eARC; Ethernet; Wi-Fi; Bluetooth 5.0 (aptX HD)

What’s in the Box

• Cambridge Audio EXN100 unit
• Power cord (IEC)
• 2 × Wi-Fi antenna
• Bluetooth antenna
• Control bus cable
• Quick Start Guide & documentation

Use Cases / Ideal For

Ideal for high-fidelity digital-first systems, the EXN100 can replace multiple devices. Use it as a streamer + preamp in a stereo setup, or drive active monitors. It also excels when paired with the EXA100 amplifier in a modular system.

Suderinamumas

Supports macOS, Windows, network storage, and streaming services. USB-A plays local media. HDMI eARC brings TV audio in. Works with power amps, preamps, or active speakers via its preamp outputs.

Pros & Cons

✅ Pros:

• Comprehensive streaming and digital connectivity in one chassis
• High-end DAC with wide format support including DSD512
• Preamp mode allows flexible system configuration
• Large, responsive display and intuitive app control
• HDMI eARC brings TV integration without extra equipment

⚠️ Cons:

• No analogue input (it’s a digital-only source device)
• Requires paired amplification unless using active speakers

The Cambridge Audio EXN100 is a sophisticated centerpiece for modern audio systems. Whether streaming, driving amplifiers, or integrating with your TV, it combines flexibility and performance to elevate your listening experience.
