1010music Bluebox Eurorack Edition – 12-Track Mixer, Recorder and Playback Hub

The Bluebox Eurorack Edition from 1010music brings professional mixing, multi-track recording and flexible playback directly into your Eurorack system. Designed for modular performers and producers, it offers deep routing, effects and session capture in a compact 30 HP format—making it a powerful centrepiece for both studio and live setups at Soundium.

Pagrindinės savybės

• 12 mono inputs / 6 stereo tracks: Mix multiple modular voices or external instruments with dedicated track control.
• 4-band parametric EQ per track: Shape tone precisely with fully adjustable low, shelf, mid and high bands.
• Built-in delay, reverb and master compressor: Add space, character and mix cohesion without external effects.
• USB-C audio streaming and MIDI/clock I/O: Send and receive audio over USB-C and sync with DAWs, controllers or other hardware.
• Six CV inputs for modulation: Control mixer parameters such as gain, pan and FX sends directly from your modular system.
• microSD recording/playback: Record full sessions or play back stems in 24-bit/48 kHz WAV format.

Customer Benefits

Bluebox Eurorack Edition simplifies modular workflows by combining essential mixing, recording and playback tools in one module. Whether you're capturing long jam sessions, performing with prepared stems or balancing multiple sound sources, its touchscreen interface and flexible routing make setup and performance smooth and efficient. It’s an ideal solution for modular artists seeking a compact yet capable hub at Soundium.

Trumpa specifikacija

• Rack width: 30 HP
• Module depth: approx. 2.5 cm
• Inputs: 12 mono 3.5 mm TS (configurable as stereo pairs)
• Outputs: 2 stereo outs, additional mono/dual outs, ausinių išvestis
• Recording format: 24-bit WAV at 48 kHz
• Power requirements: +5 V 500–850 mA (depending on screen brightness), +12 V 320 mA, –12 V 82 mA

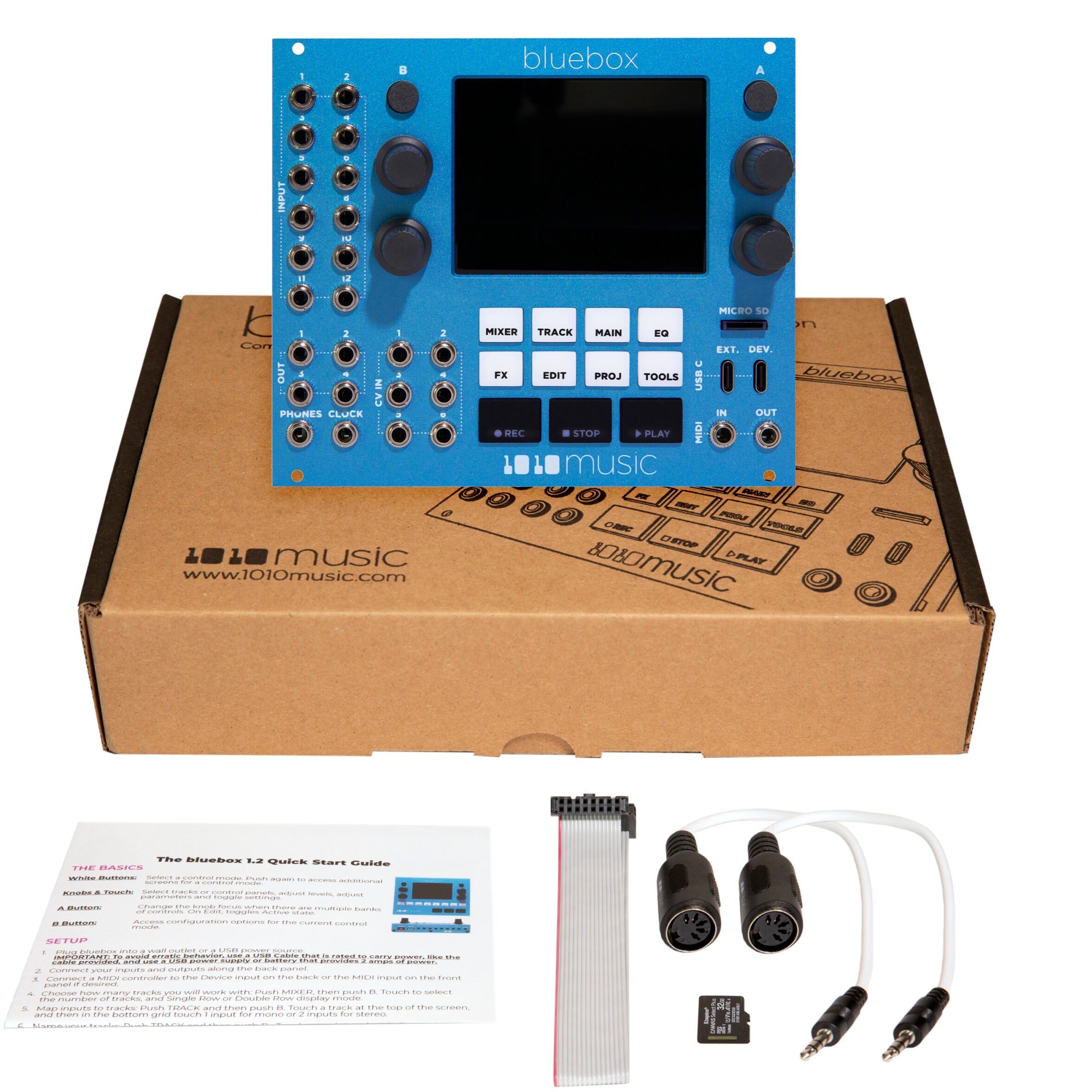

What’s in the Box

• 1010music Bluebox Eurorack Edition module
• microSD card with project files and firmware
• Two Eurorack power ribbon cables
• Two mini-TRS to 5-pin DIN MIDI adapters
• Quick Start guide and documentation

Use Cases / Ideal For

Excellent for modular performers, electronic musicians and hybrid setups needing a compact mixer with multi-track recording. Ideal for capturing jams, performing with backing tracks, centralizing routing and adding aukštos kokybės effects inside the rack.

Suderinamumas

Fits all standard Eurorack systems requiring +5 V, +12 V and –12 V rails. Works with 3.5 mm TS audio connections, supports USB-C audio streaming to computers or mobile devices, and integrates with MIDI controllers and DAW clocks via TRS MIDI.

Pros & Cons

✅ Pros:

• All-in-one mixer, recorder and FX module in 30 HP
• USB-C audio streaming for hybrid setups
• 4-band EQ, sends and master compression per track
• CV control brings modular flexibility to mixing

⚠️ Cons:

• Requires a +5 V rail, which some older racks may lack
• Occupies a moderate amount of space in small systems

The 1010music Bluebox Eurorack Edition transforms your modular system into a complete mixing and recording environment. Its combination of deep control, aukštos kokybės effects and flexible routing makes it a valuable hub for both performance and production at Soundium.
