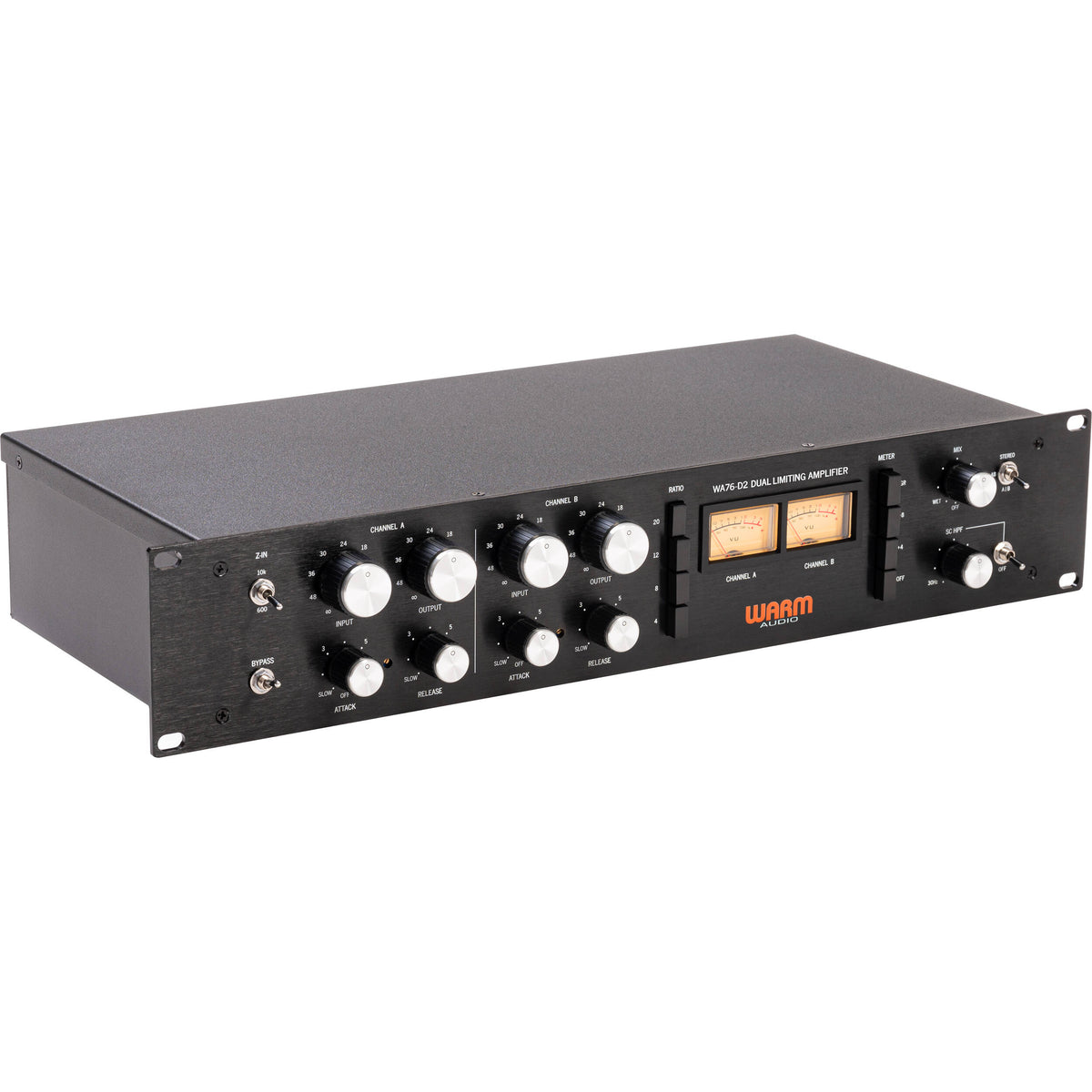

Warm Audio WA76-D2 – Dual-Channel Vintage-Style FET Compressor

The WA76-D2 from Warm Audio is a dual-channel FET compressor inspired by classic Revision D 76-style limiters. Designed for recording engineers and producers seeking fast, musical compression with analog character, it delivers the punch, clarity and responsiveness associated with iconic studio hardware—enhanced with modern workflow features at Soundium.

Key Features

• Discrete analog FET circuit with CineMag transformers: Provides authentic vintage tone with fast transient response and rich harmonic coloration.
• Dual-channel flexibility: Operate in Stereo-Linked, Primary-to-Secondary or Dual-Mono modes for vocals, instruments or mix-bus applications.
• Selectable input impedance: Choose between 600 Ω and 10 kΩ to match vintage gear or modern interface outputs.
• Dry/Wet mix control: Blend compressed and uncompressed signals for natural parallel compression.
• Side-chain high-pass filter: Adjustable from 30–300 Hz to prevent low frequencies from over-triggering the compressor.
• Classic FET behaviour: Includes the iconic “All-Buttons-In” mode plus fast attack and release times for expressive dynamics shaping.

Customer Benefits

The WA76-D2 gives you unmistakable vintage-style compression with the flexibility today’s studios require. Whether you’re tracking vocals, tightening drums, adding presence to guitars or gluing a mix together, it offers smooth control, punchy transients and a powerful tonal character. The modern additions—mix control, impedance switching and side-chain filtering—make it easier to integrate into any studio environment at Soundium.

Quick Specs

• Frequency response: 20 Hz–20 kHz (±1 dB)
• Signal-to-noise ratio: approx. 86 dB
• Gain range: up to 53 dB
• Attack time: 20 µs–0.8 ms
• Release time: 50 ms–1.1 s
• Inputs/outputs: Balanced XLR and TRS
• Dimensions: 48.3 cm × 20.3 cm × 8.9 cm (19″ rack, 2U)
• Weight: approx. 4.8 kg

What’s in the Box

• Warm Audio WA76-D2 dual-channel FET compressor
• Universal power supply with IEC connection
• User documentation

Use Cases / Ideal For

Ideal for professional studios, project studios and broadcast applications. Perfect for vocals, drum overheads, room mics, bass, guitars and stereo bus compression when you need fast, character-rich control.

Compatibility

Fits any standard 19″ rack and integrates easily into balanced analog signal paths. Selectable impedance ensures proper matching with both vintage and modern equipment.

Pros & Cons

✅ Pros:

• Authentic 76-style FET sound with modern enhancements
• Dual-channel design for versatile tracking and mixing
• Dry/Wet control and side-chain filtering for flexible compression techniques

⚠️ Cons:

• 2U rack size takes up more space in compact setups
• Learning curve for users unfamiliar with vintage-style FET compressors

The Warm Audio WA76-D2 blends the classic punch of vintage FET compressors with modern control options. For engineers looking to add bold character and precision dynamics to their productions, it’s a powerful and reliable studio tool at Soundium.
