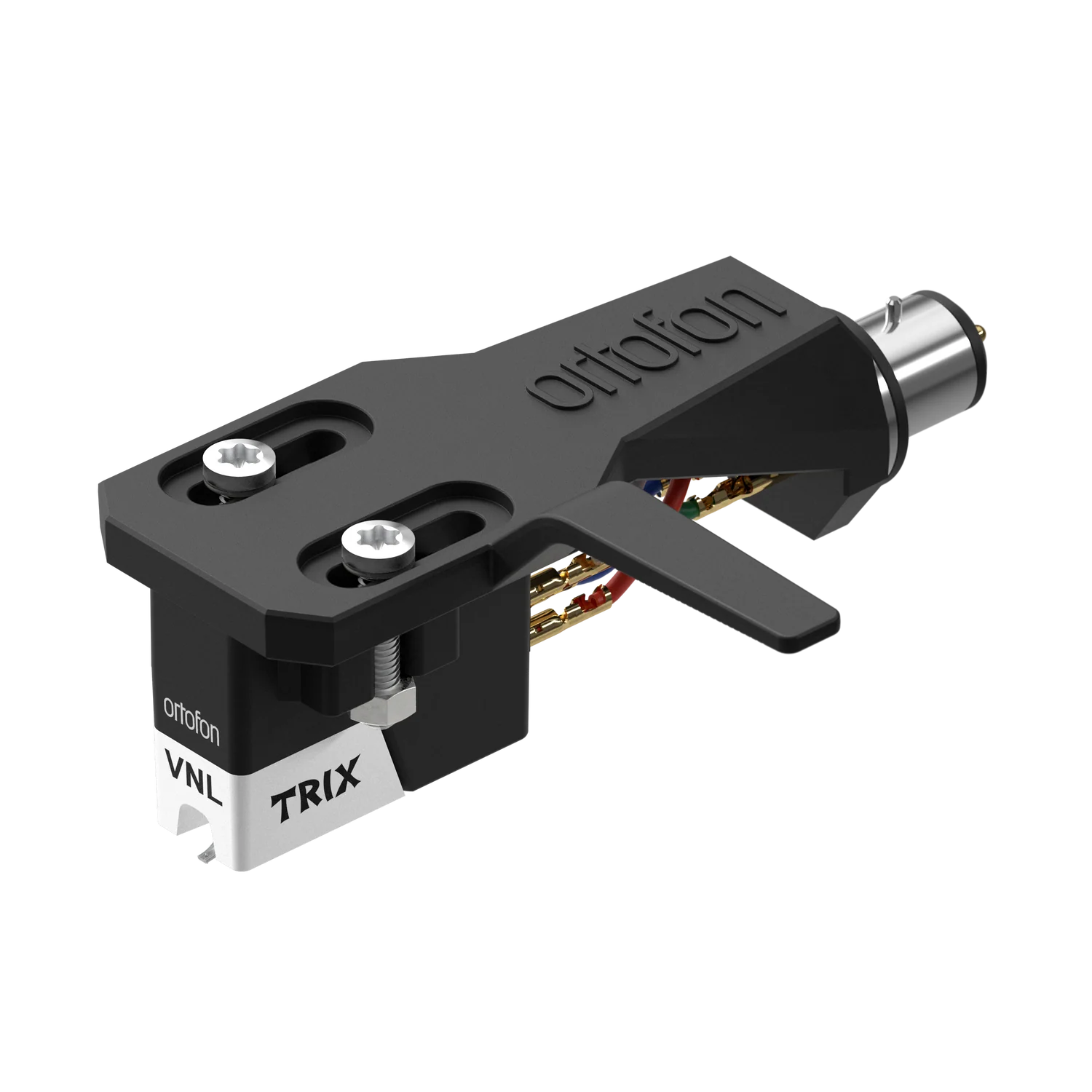

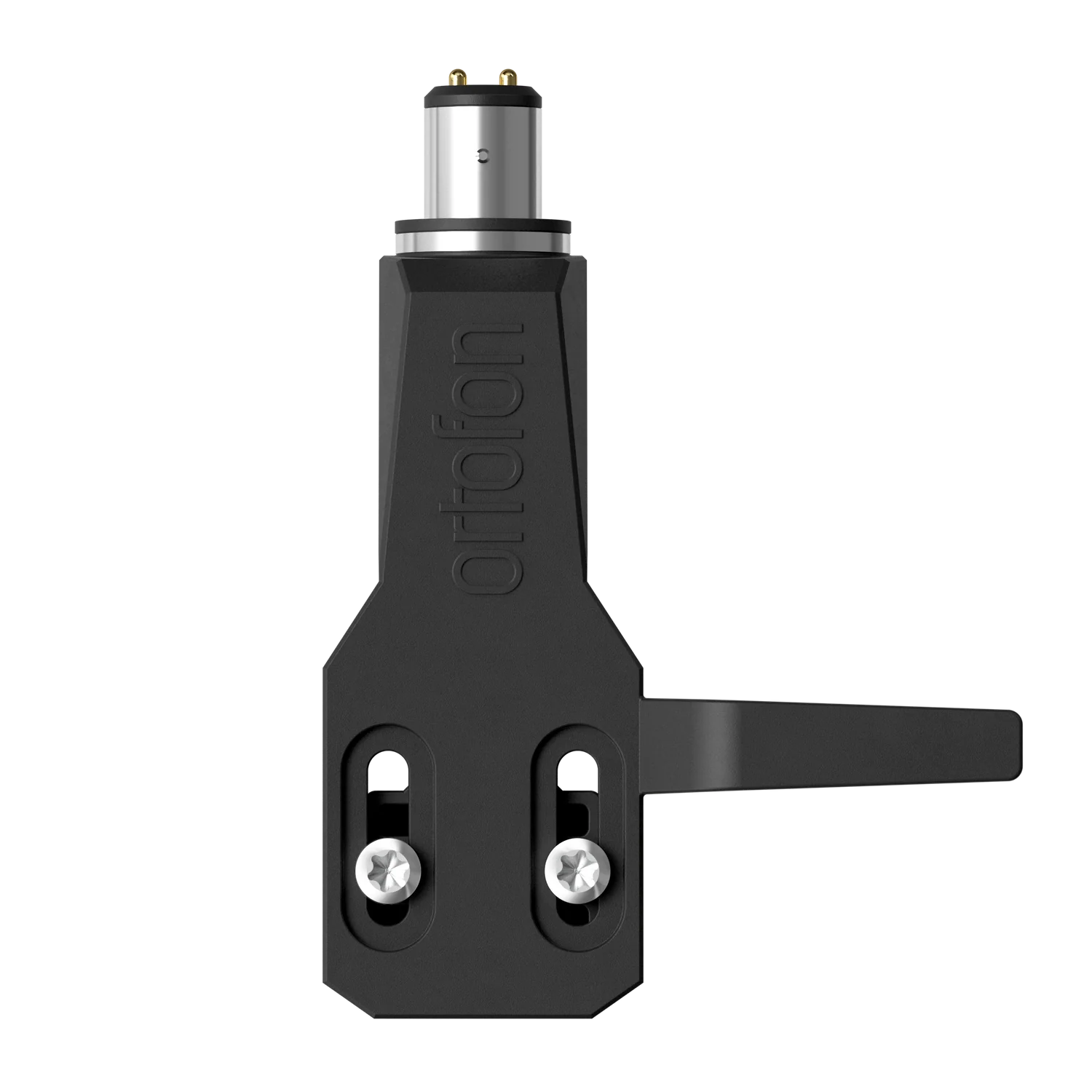

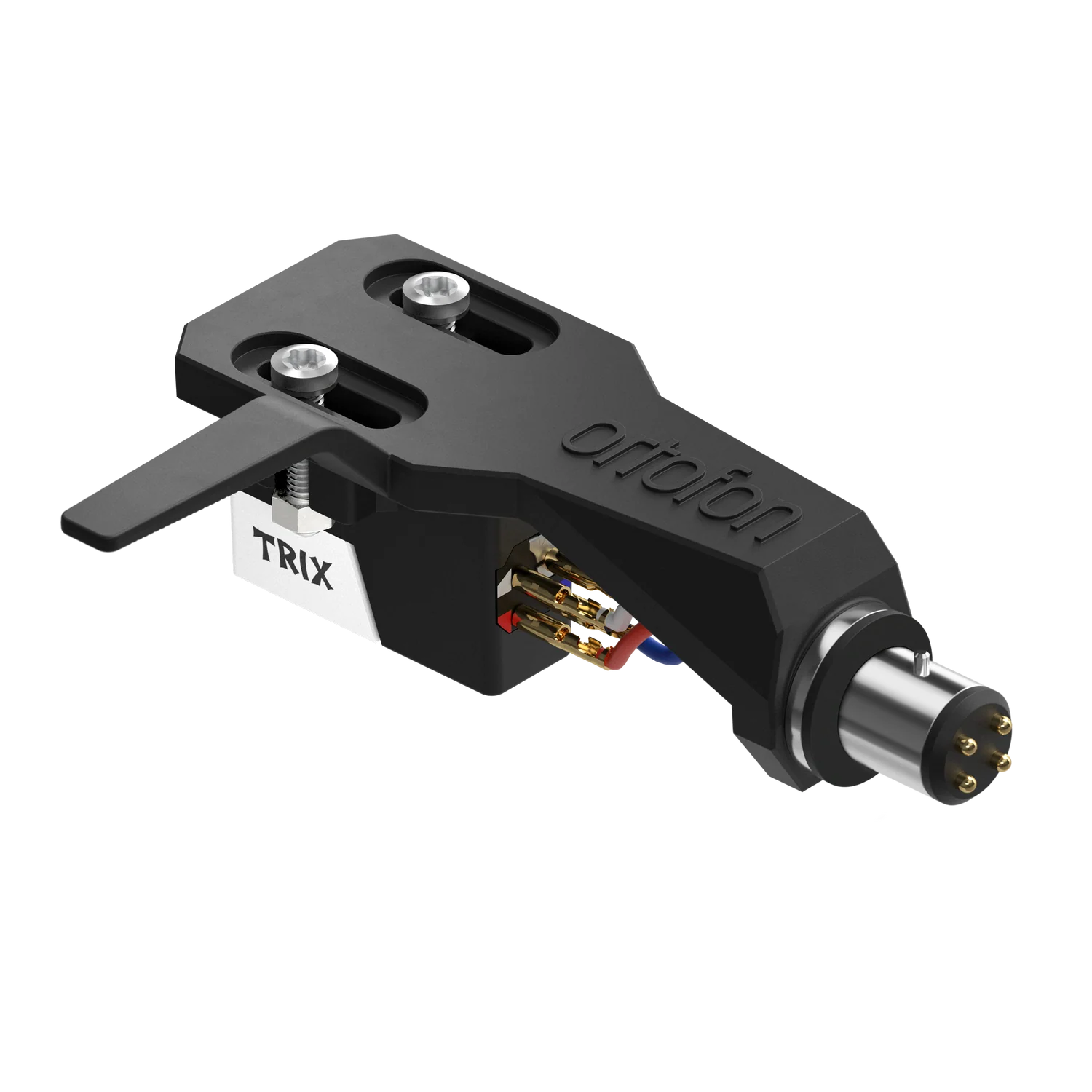

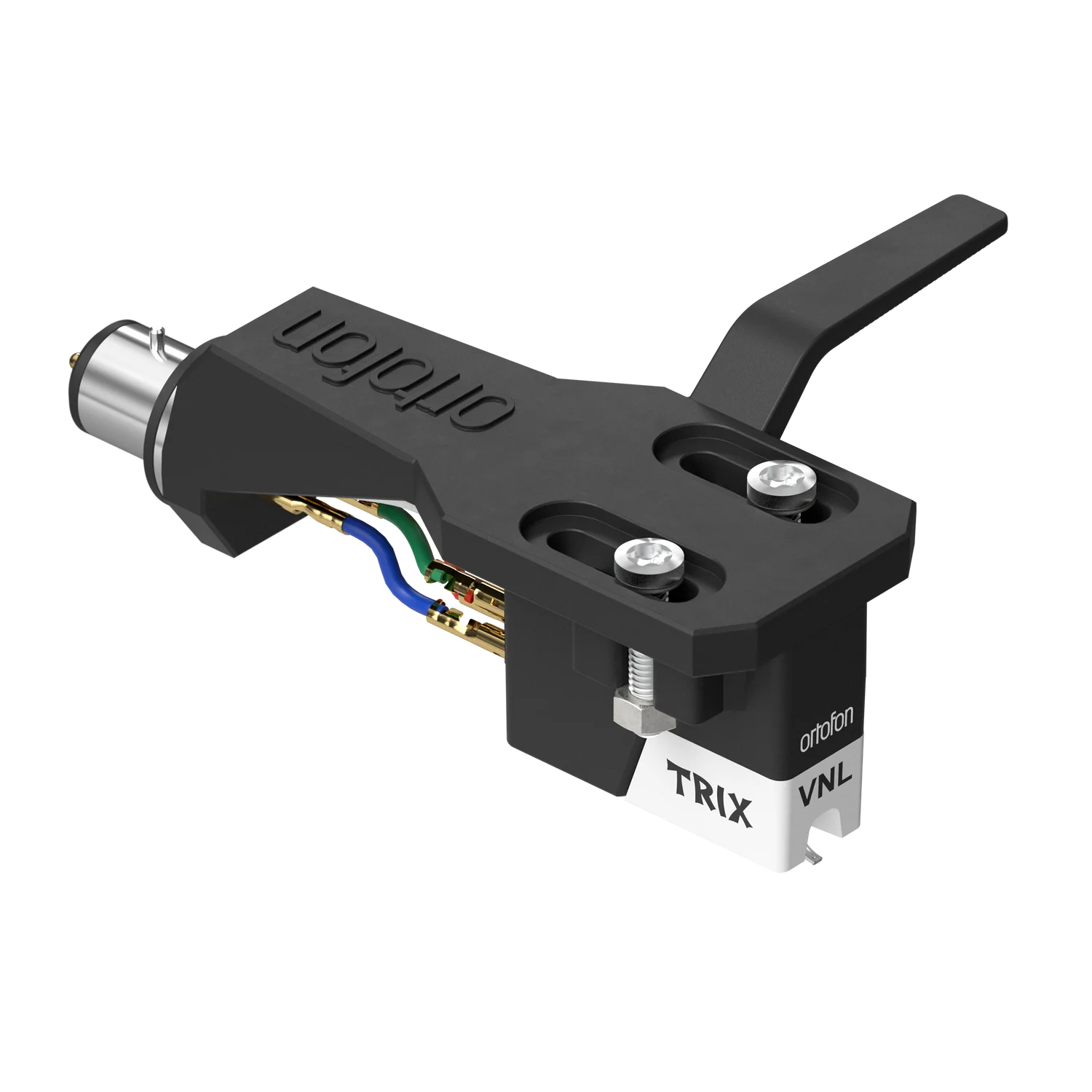

Ortofon VNL TRIX (Premounted on SH-2)

The Ortofon VNL TRIX Premounted is the perfect plug-and-play solution for DJs who demand durability, precision, and raw power. Featuring the high-output VNL TRIX cartridge with a rugged spherical stylus and Ortofon’s exclusive suspension, it’s built for heavy scratching, back-cueing, and flawless club performance. Premounted on the universal SH-2 headshell, it’s ready to drop straight onto your turntable for reliable playback, seamless cueing, and powerful sound. The fluorescent white stylus glows under UV light for easy visibility in dark booths, making it a trusted tool for pros on stage and in the studio.

Quick Specs

• Output Voltage (1kHz, 5cm/sec): 10 mV
• Tracking Ability (315Hz): 100 μm
• Stylus Type: Spherical
• Stylus Tip Radius: R 18 μm
• Cantilever Material: Aluminium
• Stylus Suspension: Ortofon exclusive
• Coil System: Quad coils (OFC wire)
• Channel Separation (1 kHz): 22 dB
• Frequency Response: 20 Hz – 20 kHz (+/- 3 dB)
• Dynamic Lateral Compliance: 12 μm/mN
• Recommended Tracking Force: 4.0 g
• Recommended Load Resistance: 47 kΩ
• Premounted Cartridge Weight: 17 g

What’s in the Box

• Ortofon VNL TRIX Cartridge (Premounted on SH-2 Headshell)
• Fluorescent White Stylus (pre-installed)
• Stylus Protector
• Mounting Screws (integrated with SH-2 headshell)
